Series 01 · Pit-less weighbridge

Pit-less. Ready to weigh.

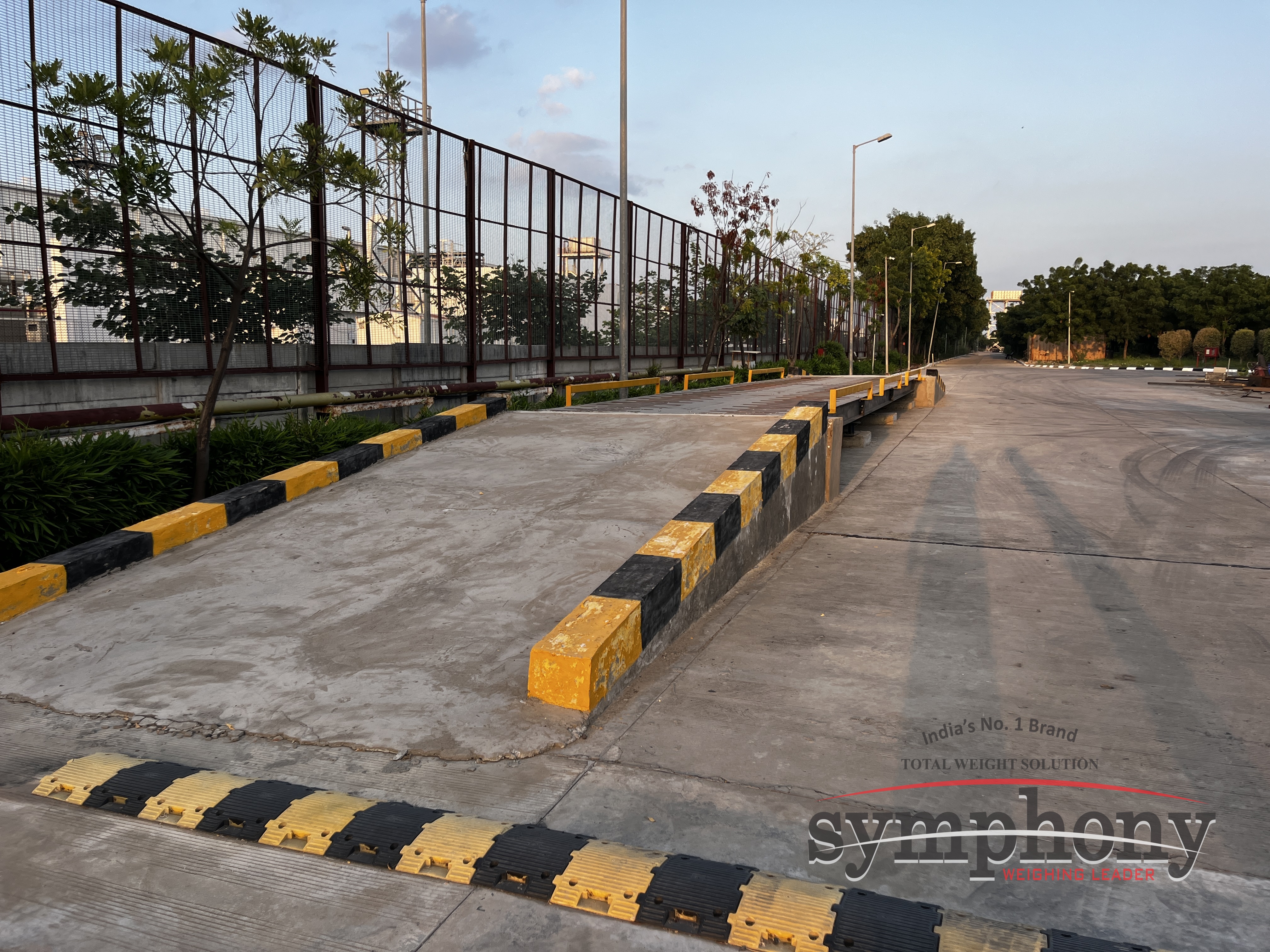

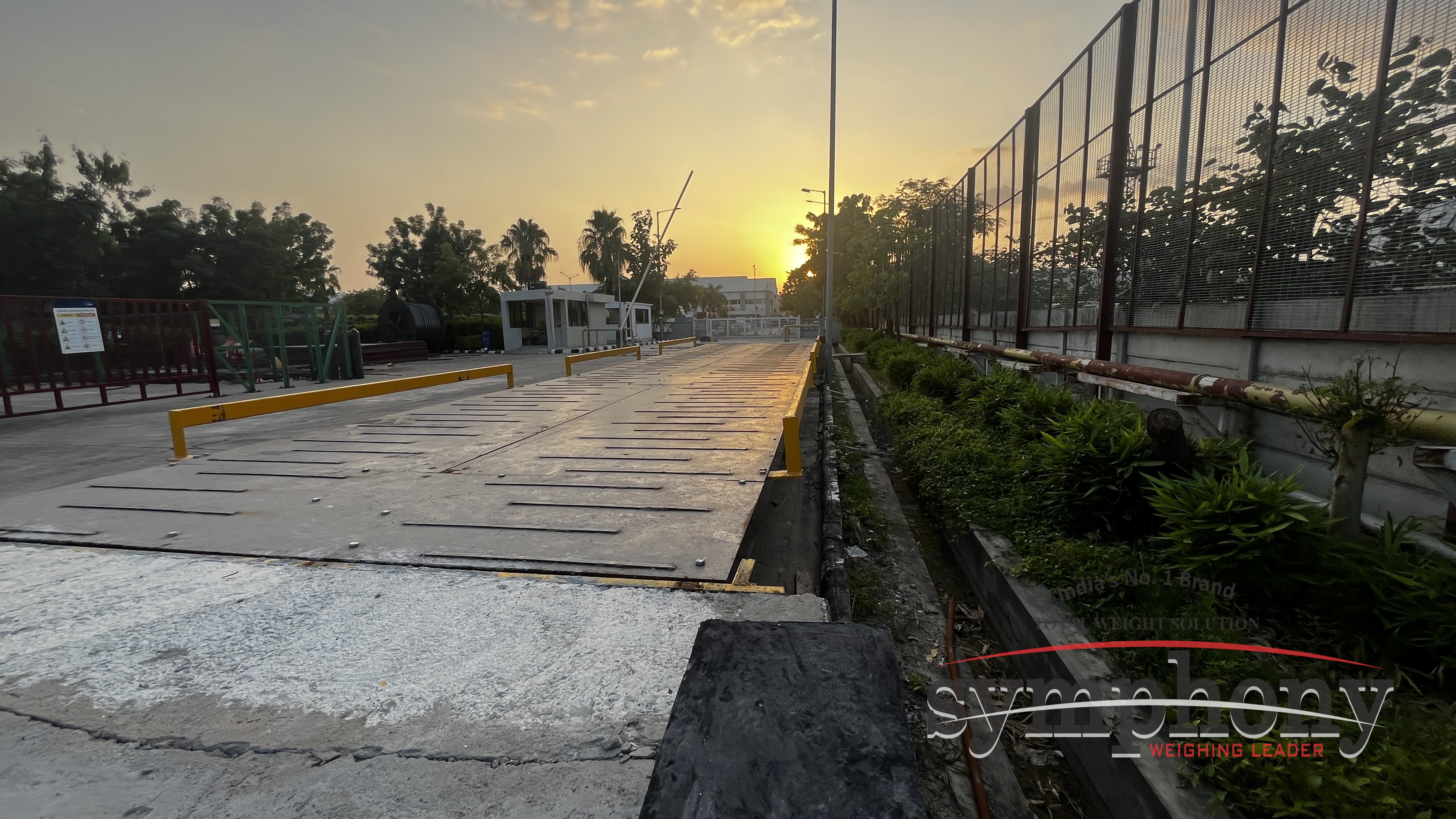

The deck sits above ground on concrete pedestals with approach ramps. No pit means no water-logging, easy load-cell access and quick installation. The full-steel pit-less is our most popular model.

Get a quotation Sample foundation drawing (PDF)Technical specification (PDF)

Symphony Pit-less weighbridge: Pit-less steel deck on load-cell pedestals — Pit-less steel deck on load-cell pedestals

Quick answer

A pit-less weighbridge is a truck scale whose steel deck stands above ground on concrete pedestals, with approach ramps at both ends. It needs no excavation pit, so it does not flood, its load cells are easy to reach, and civil work is lighter. Symphony builds them from 10 to 100 MT, up to 18 m long in India and 24 m or longer for Africa and export.

Why choose it

Built for your site.

Best for: Most industrial sites with room for approach ramps: factories, mines, warehouses, mandis and logistics yards.

No pit to floodThe deck stands above ground, clear of water-logging.
Service without diggingLoad cells and junction box are reachable from the side.
Fast to commissionFewer civil works than a pit.

Symphony · specification platePit-less weighbridge

Item	Specification
Capacity	10 – 100 MT (higher on request)
Platform	Mild steel; optional RCC deck
Length × width	7 – 18 m × 3 m in India; 24 m or longer for Africa and export (custom)
Load cells	6 cells (up to 12 m), 8 cells (16 m), 10 cells (18 m)
Weighing	Analog or digital load-cell system
Accuracy	Class III · OIML R76
Display	LED / LCD indicator with printer
Foundation	Concrete pedestals, no pit; approach ramps
Power	230 V AC with CVT; battery or solar option
Warranty	1 year on platform, load cells and electronics
Delivery	About 2 weeks from a commercially cleared order and purchase order

Truck-fit planner

Pick your truck. See it on the deck.

Choose the heaviest vehicle you weigh and see it on a pit-less deck, with the deck length, capacity and load-cell layout.

Pick a vehicle to see the deck size, capacity and load cells.

Site photographs

Pit-less from every side.

Real Symphony installations, every photo shown whole. Swipe, use the arrows or open any photo full screen.

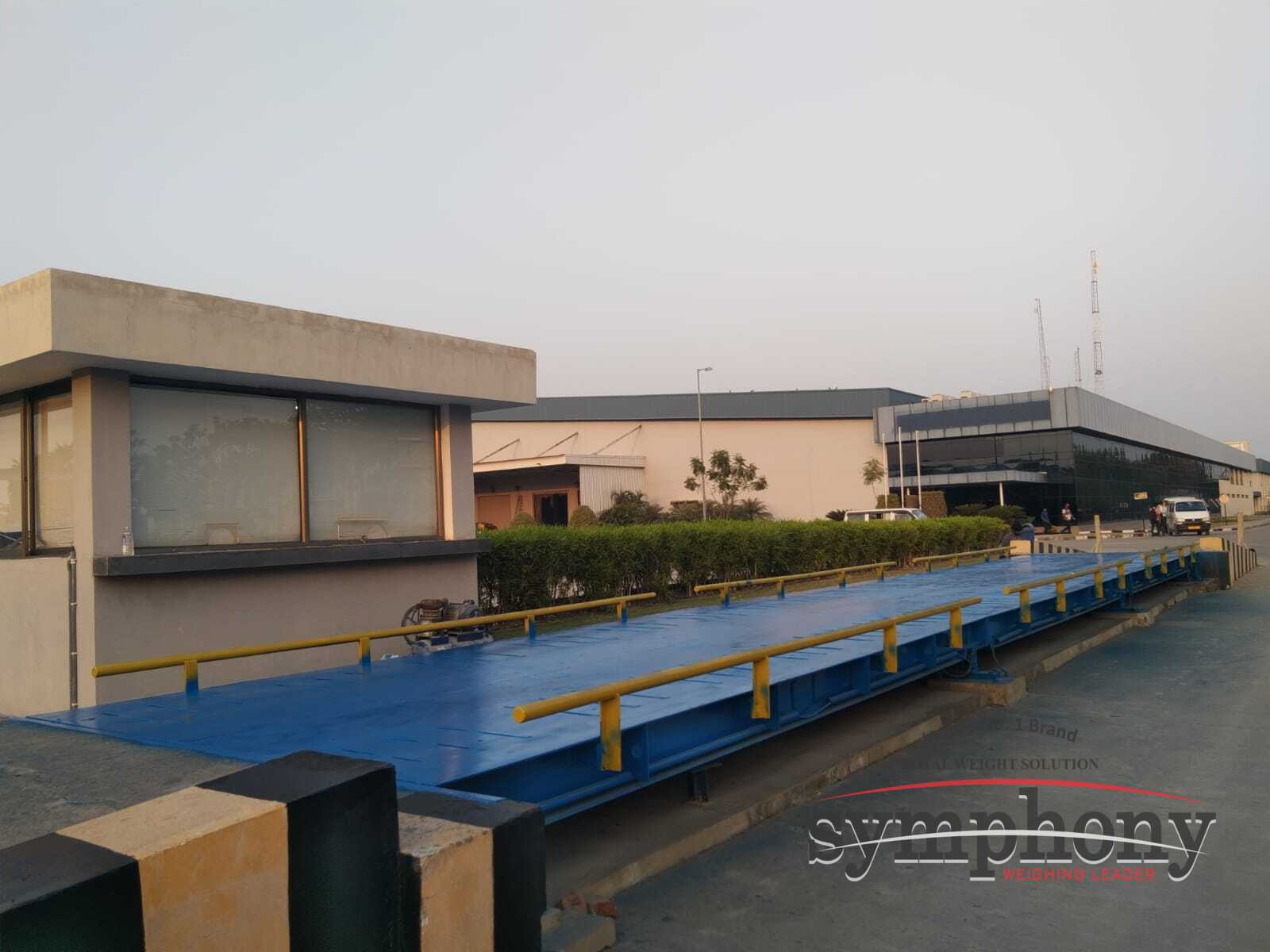

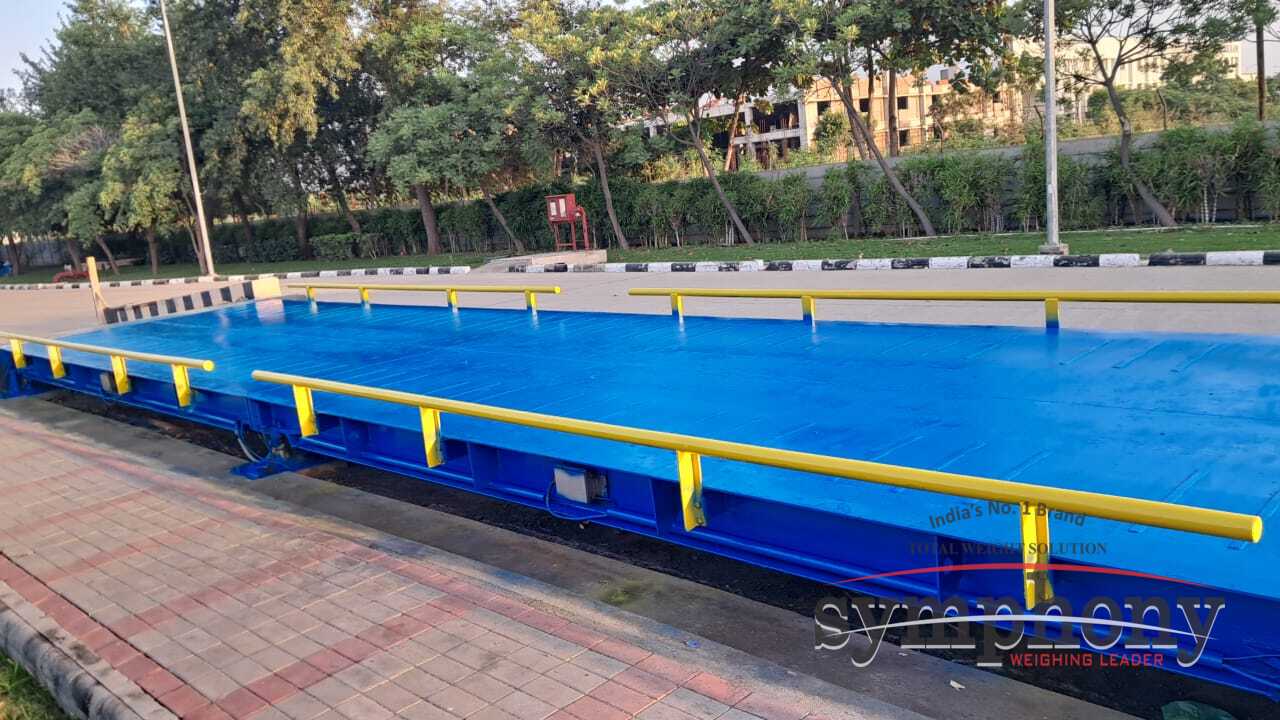

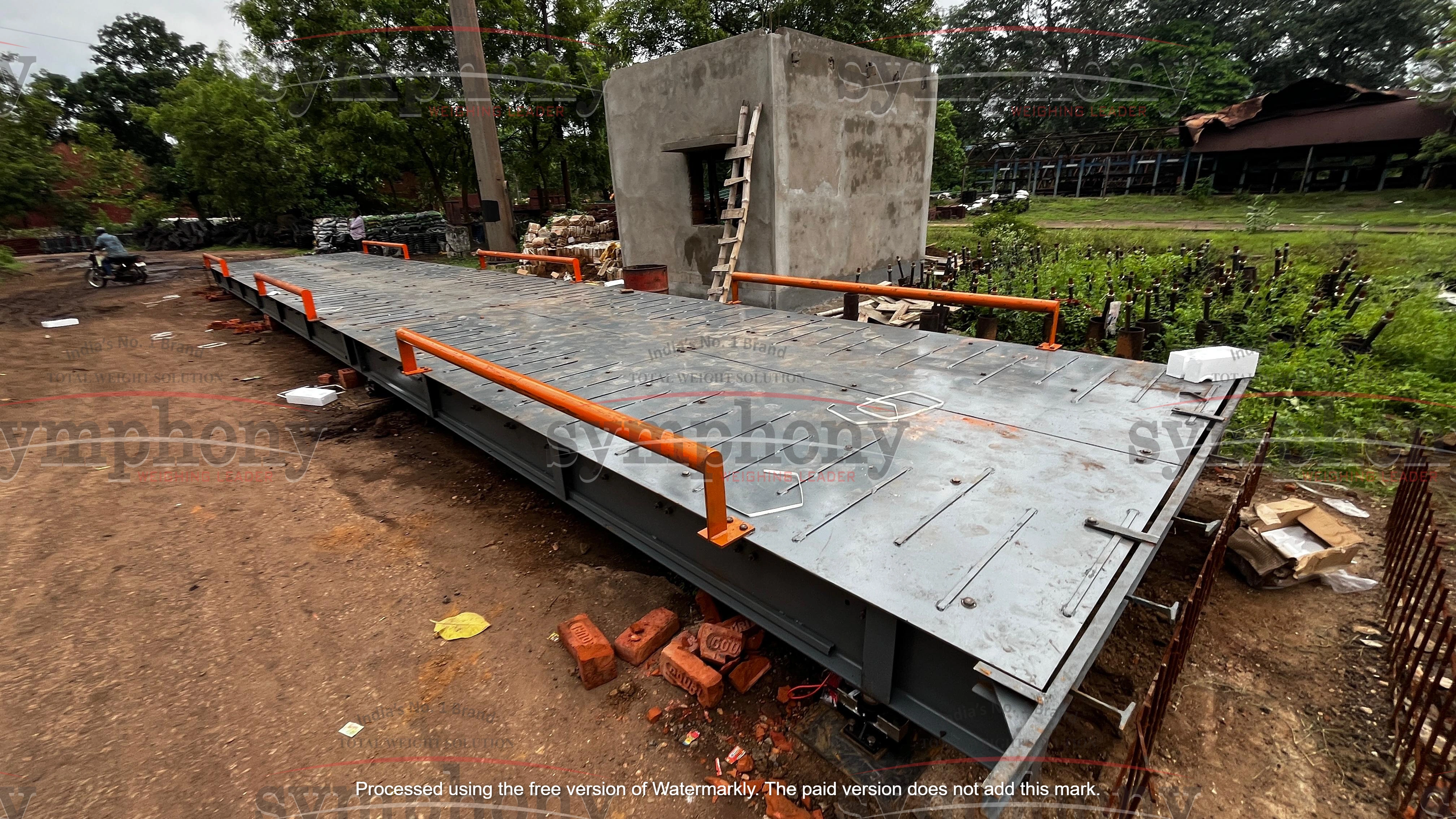

Pit-less weighbridge: Full-length deck with side guard rails — 01Full-length deck with side guard rails

Pit-less weighbridge: 100 MT pit-less at a railway stores depot, Jodhpur — 02100 MT pit-less at a railway stores depot, Jodhpur

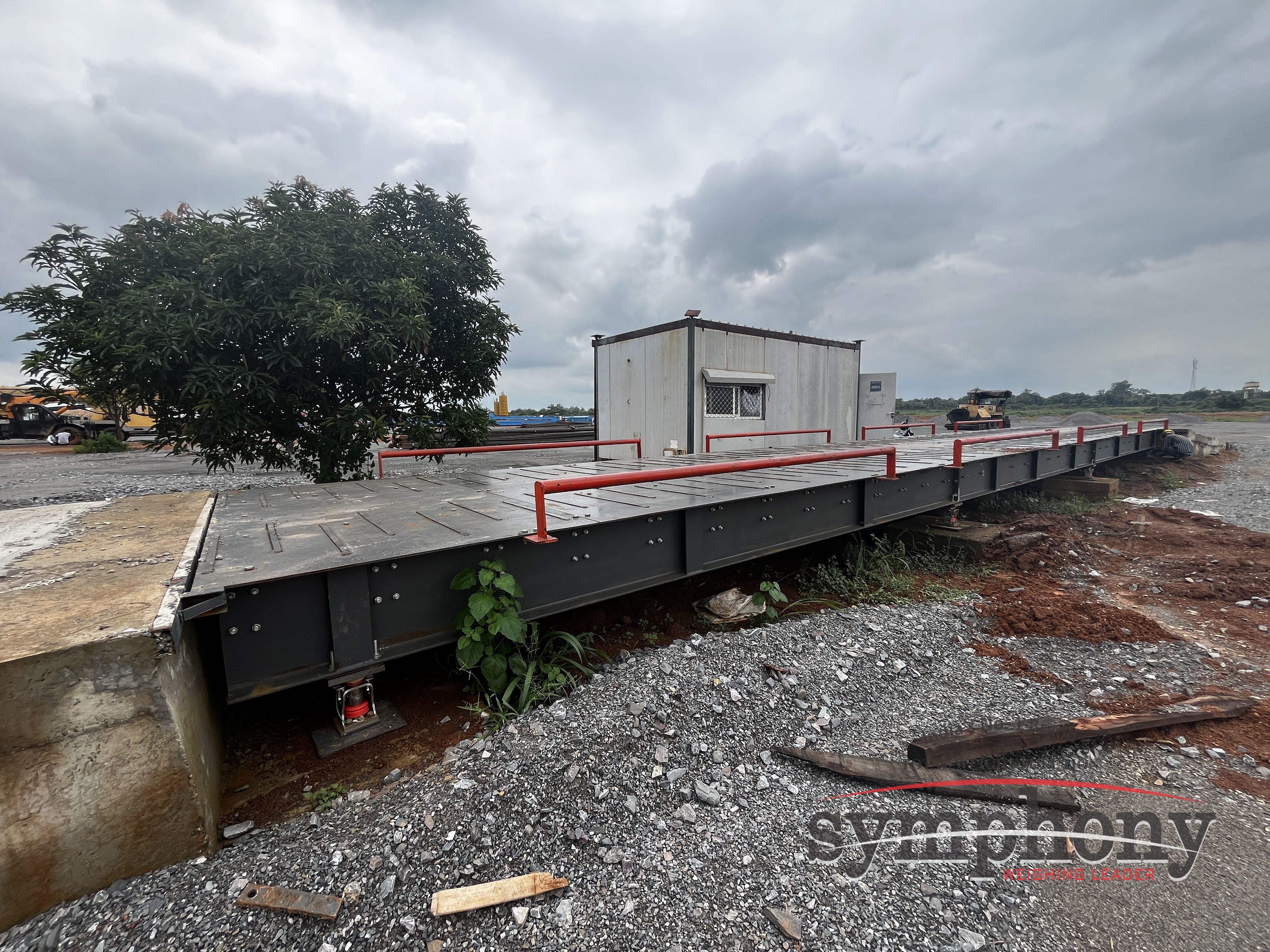

Pit-less weighbridge: Side view: steel deck on load-cell pedestals — 03Side view: steel deck on load-cell pedestals

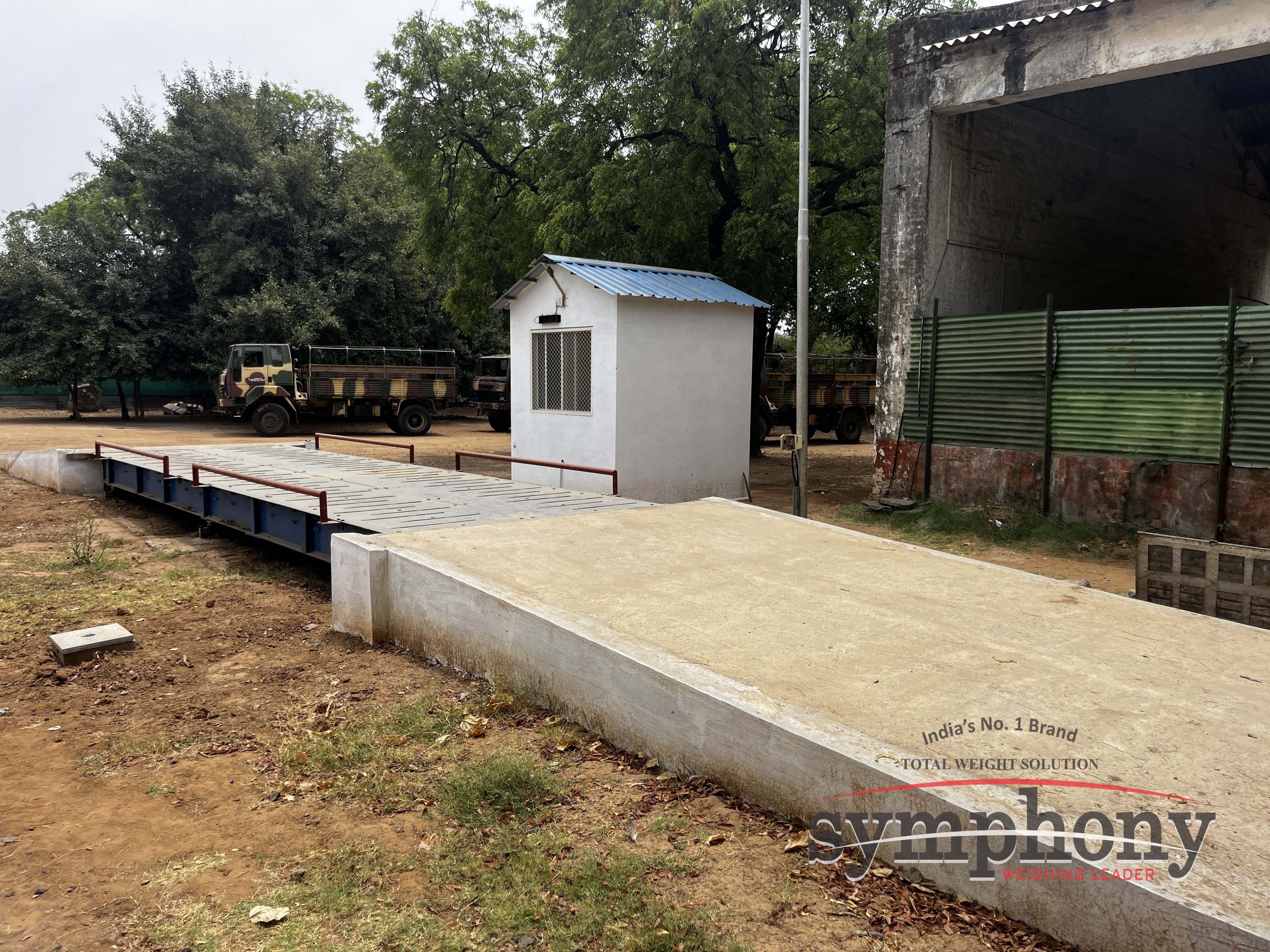

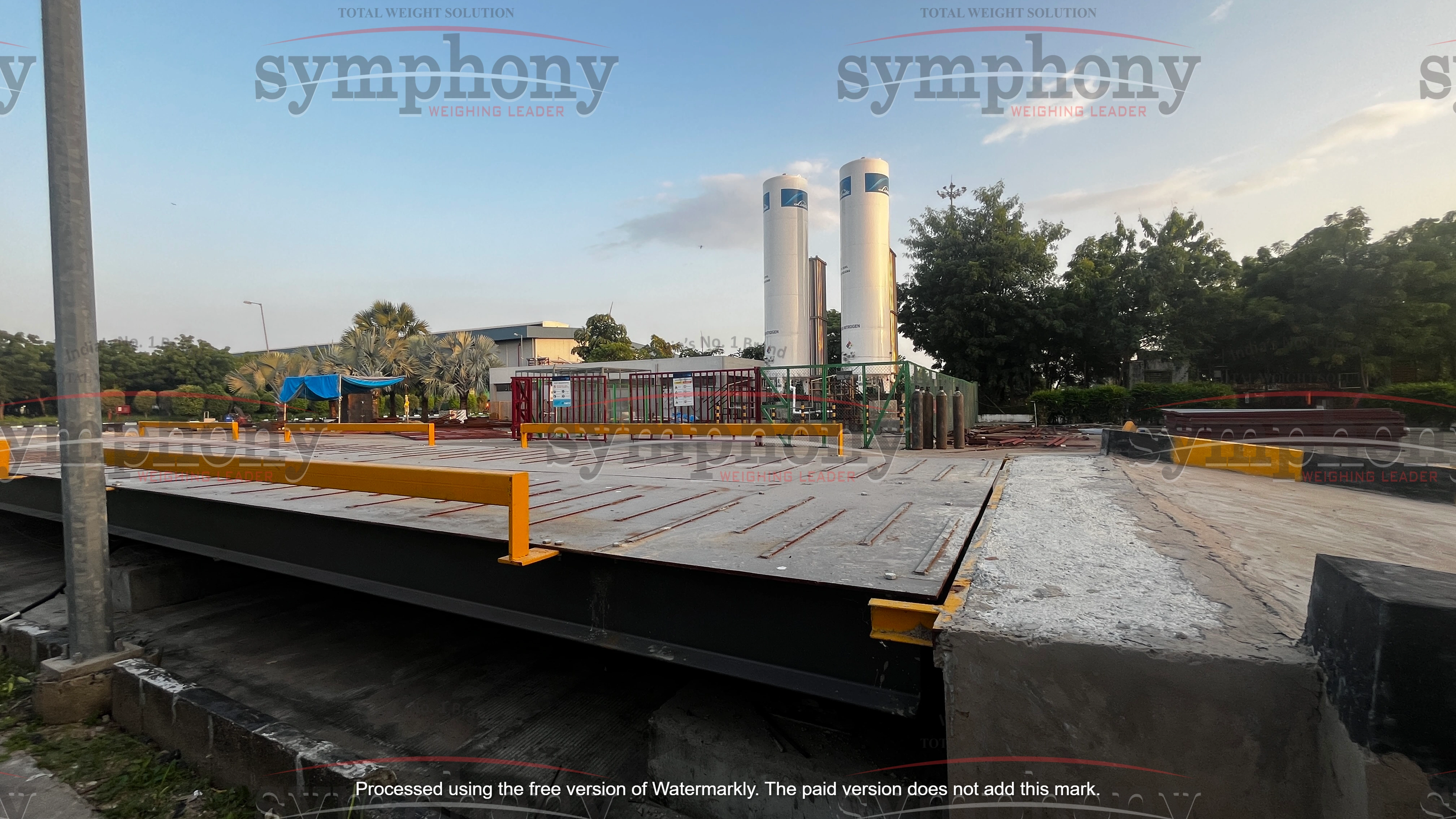

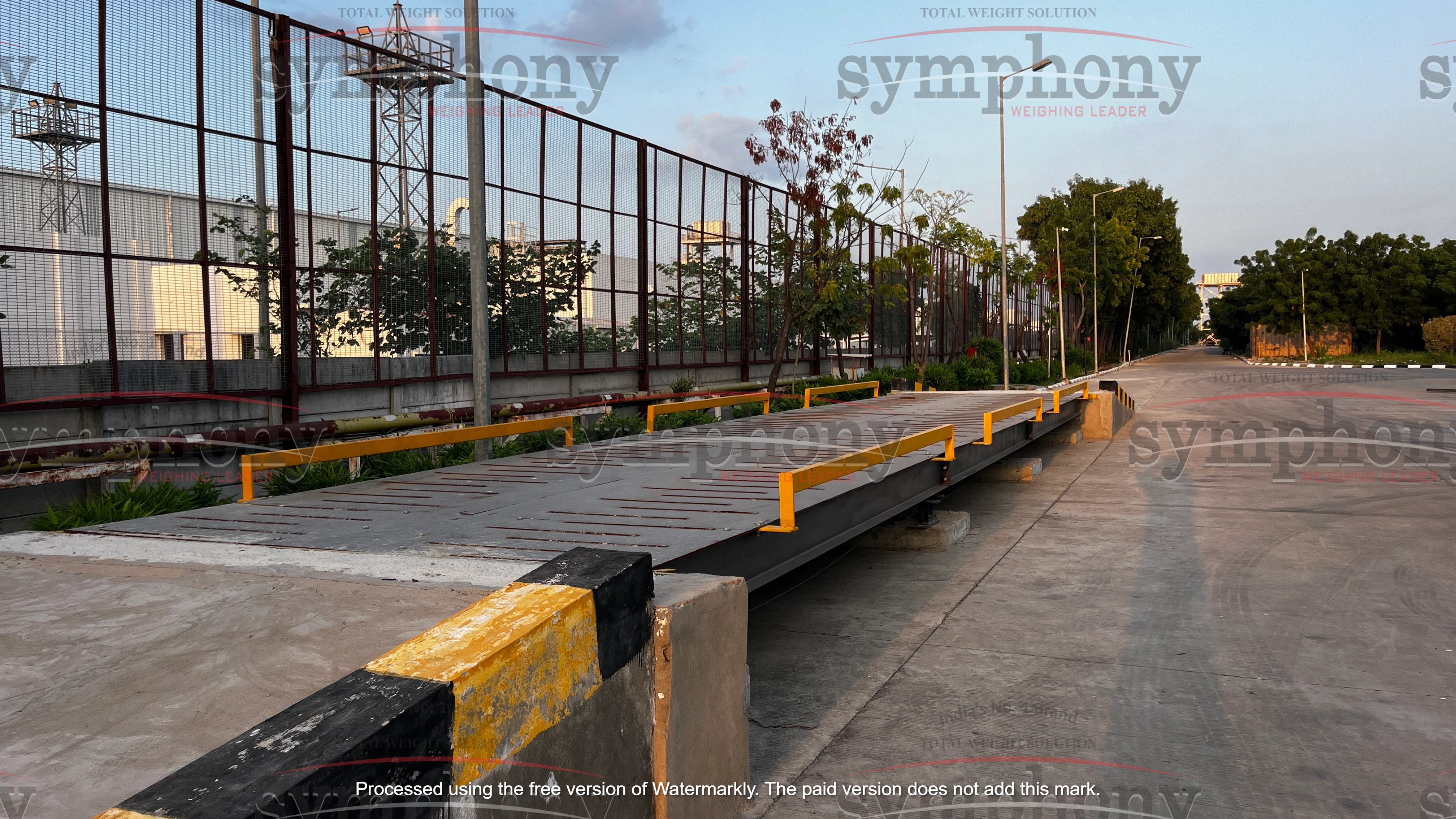

Pit-less weighbridge: Approach end with weigh cabin — 04Approach end with weigh cabin

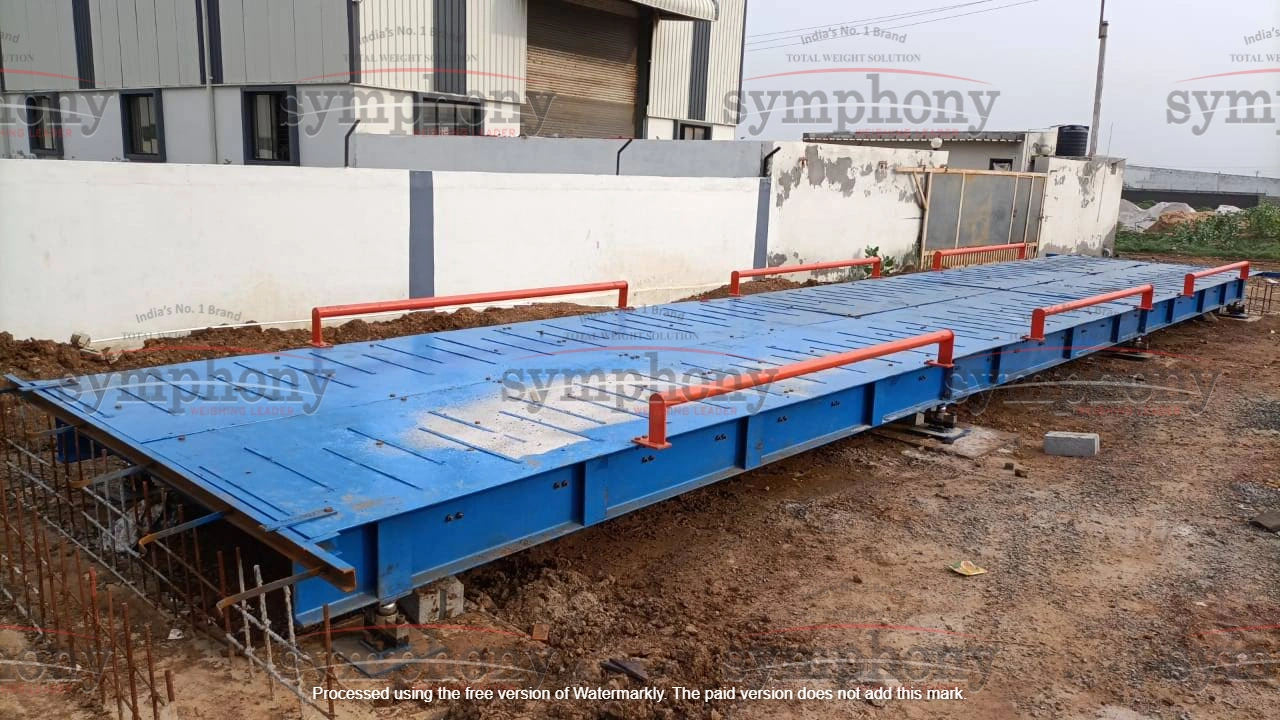

Pit-less weighbridge: Deck being erected on its pedestals — 05Deck being erected on its pedestals

What is supplied

One system, every part matched.

Platform

Pit-less deck fabricated in our workshop, painted before dispatch.

Load cells & junction box

Analog or digital load cells with a surge-protected junction box.

Indicator, printer, software

LED/LCD or touch terminal, slip printer, SMFW Weighment Software option.

Drawing, install, stamp

Foundation drawing, erection, calibration and stamping support.

Before you order

Get the foundation drawing for your size.

Your civil contractor can price and plan the foundation before the weighbridge is ordered. We send the drawing and material list for your exact platform.

Free foundation drawing for your size

Get the foundation drawing and material list for your platform size before you order. Drawings exist for 7.5 to 18 m, pit-type and pit-less; 24 m and longer export platforms on request.

Name

Company name

E-mail

Mobile numberInclude the country code, e.g. +91 or +254.

Country

State / province

City

Postal code (optional)

Weighbridge model

Platform size

Security check

WhatsApp instead

An engineer replies within one working day. We verify your e-mail with a one-time code. By sending, you agree to our privacy notice.

FAQ

Questions, answered.

How high is a pit-less deck above ground?

The deck sits on pedestals with approach ramps at both ends. Exact deck height and ramp length are shown on the foundation drawing for your size.

Can a pit-less deck be moved later?

The steel deck can be lifted and re-installed on a new foundation. For frequent moves, choose the modular weighbridge.

What warranty do you give?

Every Symphony weighbridge carries a 1-year warranty on the platform, load cells and electronics. Concrete (RCC) platforms also carry a 25-year structural warranty on the concrete.

How soon can you deliver?

Generally about 2 weeks from a commercially cleared order with your purchase order. Installation, calibration and stamping follow once the foundation is ready.

What is the difference between a pit-less and a pit-type weighbridge?

A pit-less deck stands above ground on concrete pedestals and uses approach ramps. A pit-type deck sits flush with the ground in a drained pit, so vehicles can enter from any side. Pit-less is faster and simpler to build; pit-type suits tight plots.
