Series 03 · Concrete / RCC weighbridge

Concrete / RCC. Outlasts the site.

A reinforced-concrete deck is rust-proof, stable and maintenance-free. It absorbs shock, protects the load cells and gives long-lasting, accurate weighing, especially in harsh, coastal and chemical environments. The semi-concrete version combines a steel frame with a concrete fill.

Get a quotation Sample foundation drawing (PDF)Technical specification (PDF)

Symphony Concrete / RCC weighbridge: Concrete deck in a blue steel frame, with weigh cabin — Concrete deck in a blue steel frame, with weigh cabin

Quick answer

An RCC (concrete) weighbridge has a reinforced-concrete deck instead of a steel one. It does not rust and needs no repainting, so it suits salt works, ports, coastal and chemical sites. Symphony supplies fully RCC and steel-cum-RCC decks from 10 to 100 MT, and has delivered 120 MT.

Why choose it

Built for your site.

Best for: Salt works, chemical plants, ports and coastal sites, and any permanent installation where repainting is a cost.

Maintenance-freeNo corrosion, no yearly repainting.
High durabilityA concrete slab outlives a steel deck.
Steadier readingsThe heavy slab damps vibration before it reaches the load cells.

Symphony · specification plateConcrete / RCC weighbridge

Item	Specification
Deck	Fully RCC (top slab and side walls) or semi-concrete (steel frame, concrete fill)
Capacity	10 – 100 MT standard; 120 MT delivered
Length × width	7 – 18 m × 3 m in India; 24 m or longer for Africa and export (custom)
Load cells	Analog or digital with junction box
Accuracy	Class III · OIML R76
Display	LED / LCD indicator with printer
Foundation	Pit or pit-less, as required
Power	230 V AC with CVT
Warranty	25-year structural warranty on the concrete platform; 1 year on load cells and electronics
Delivery	About 2 weeks from a commercially cleared order and purchase order

Truck-fit planner

Pick your truck. See it on the deck.

Choose the heaviest vehicle you weigh and see it on a concrete (RCC) deck, with the deck length, capacity and load-cell layout.

Pick a vehicle to see the deck size, capacity and load cells.

Site photographs

Concrete / RCC from every side.

Real Symphony installations, every photo shown whole. Swipe, use the arrows or open any photo full screen.

Concrete / RCC weighbridge: Concrete deck at a salt works, at sunset — 01Concrete deck at a salt works, at sunset

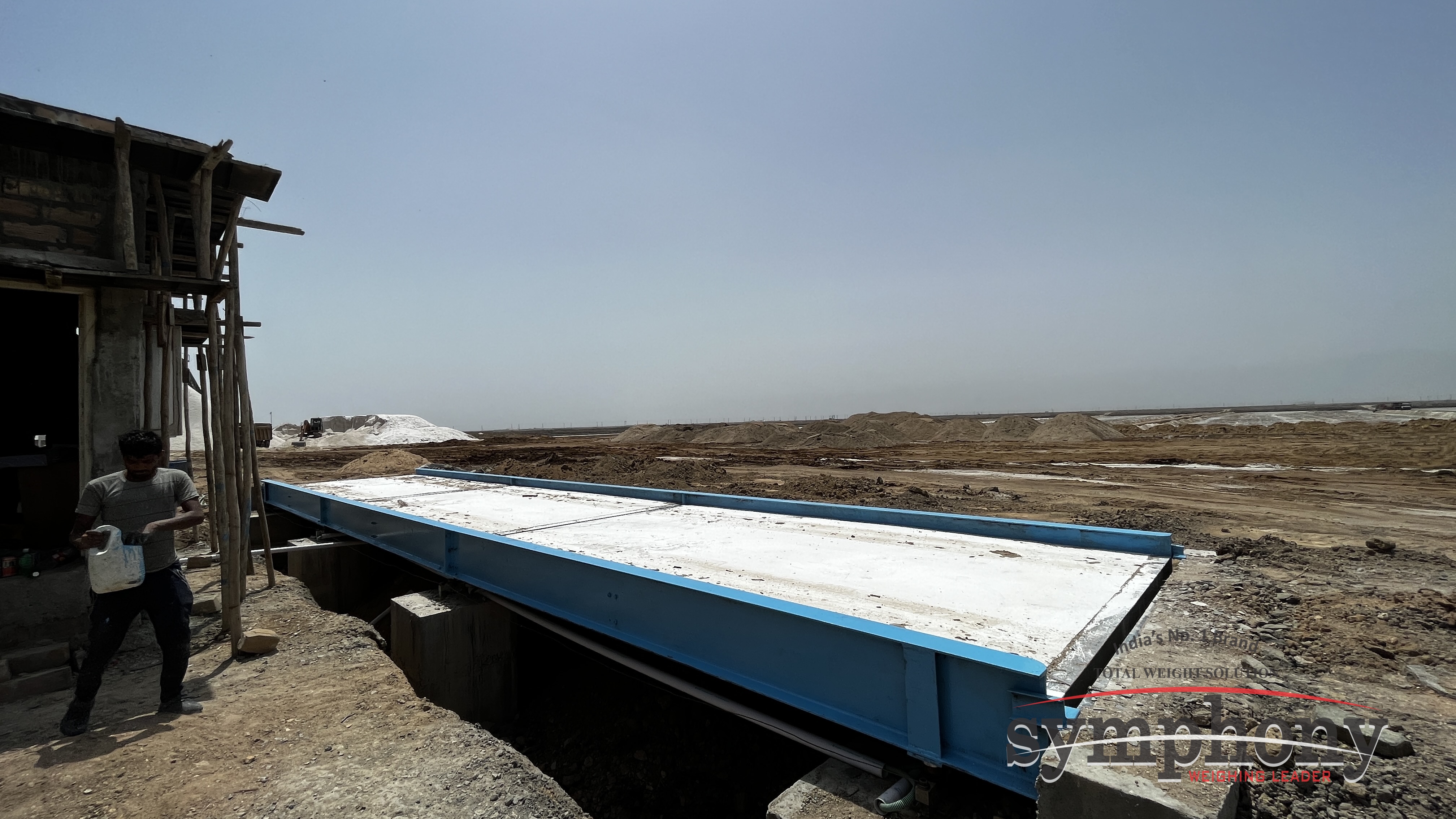

Concrete / RCC weighbridge: Finishing the concrete deck at a salt works — 02Finishing the concrete deck at a salt works

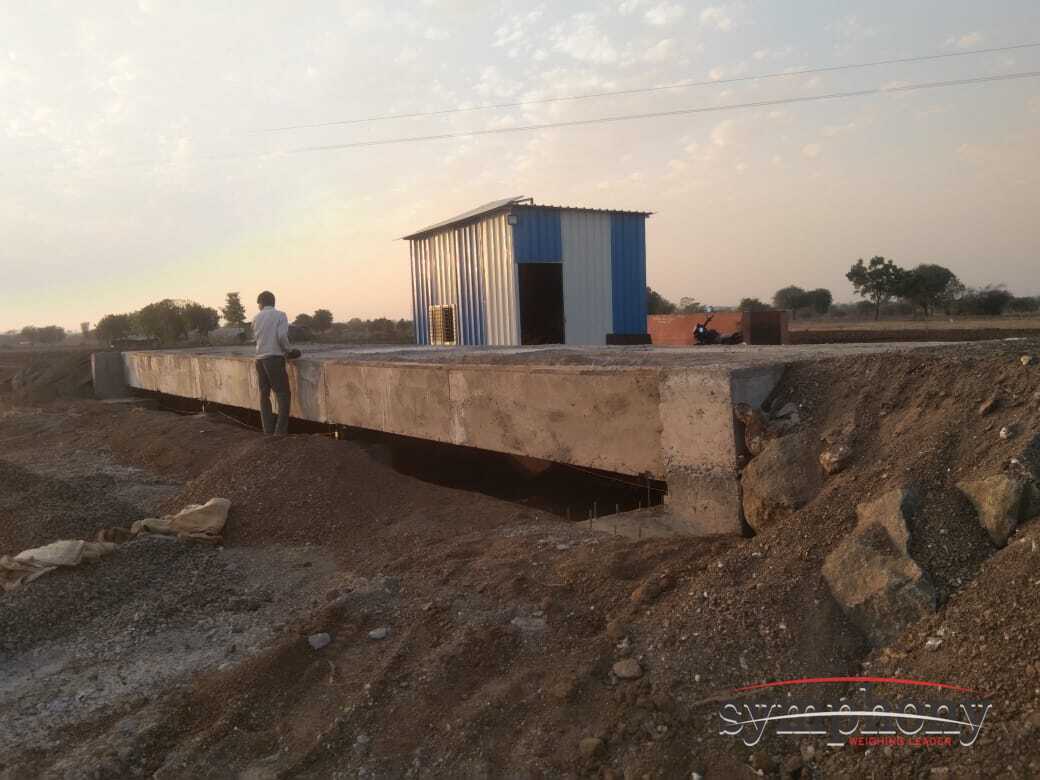

Concrete / RCC weighbridge: Concrete deck at a new factory office — 03Concrete deck at a new factory office

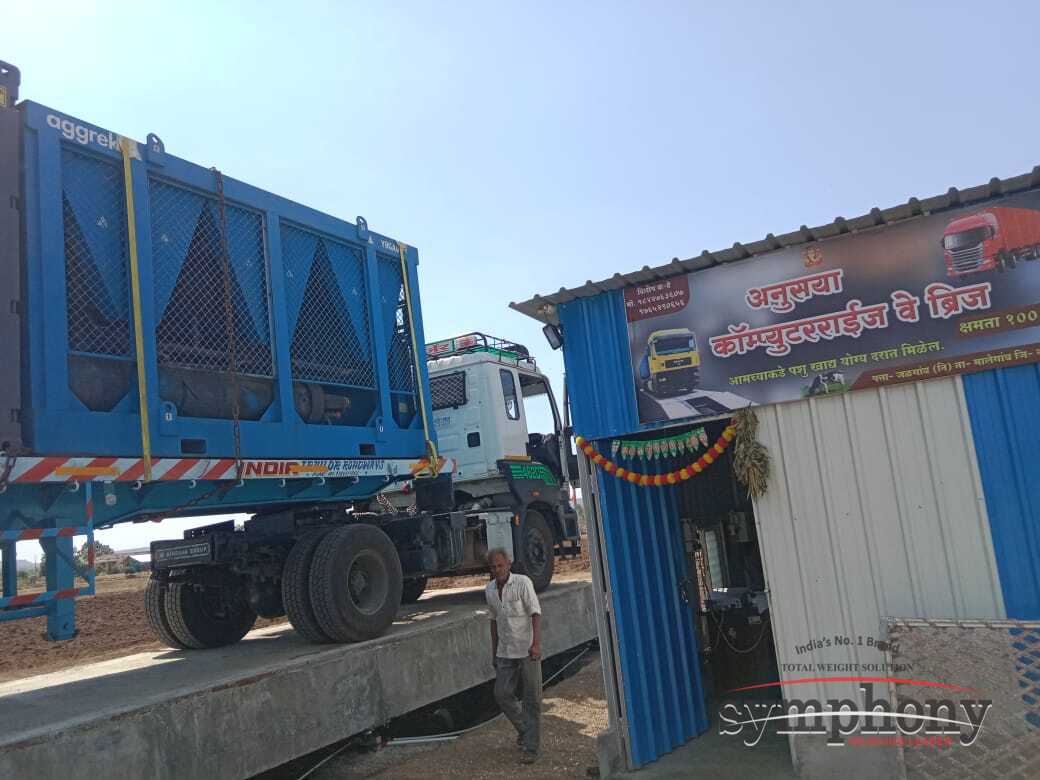

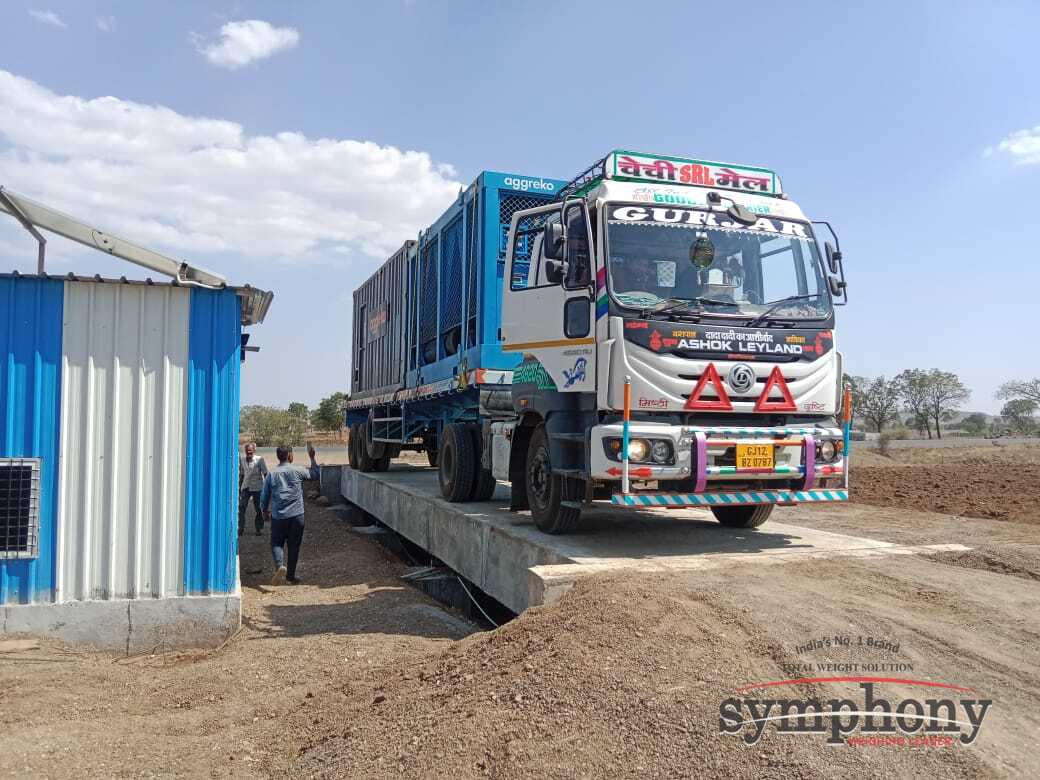

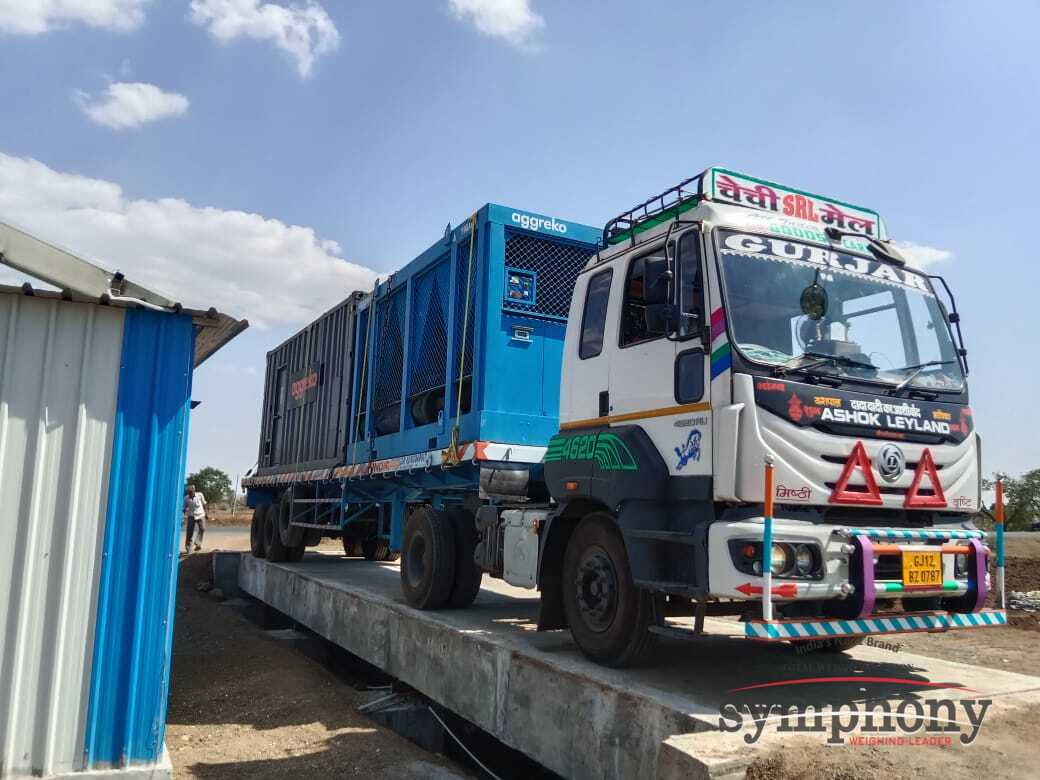

Concrete / RCC weighbridge: Loaded tanker on the concrete deck — 04Loaded tanker on the concrete deck

Concrete / RCC weighbridge: Sugarcane truck on the concrete deck — 05Sugarcane truck on the concrete deck

Concrete / RCC weighbridge: Steel-framed concrete deck beside the compound wall — 06Steel-framed concrete deck beside the compound wall

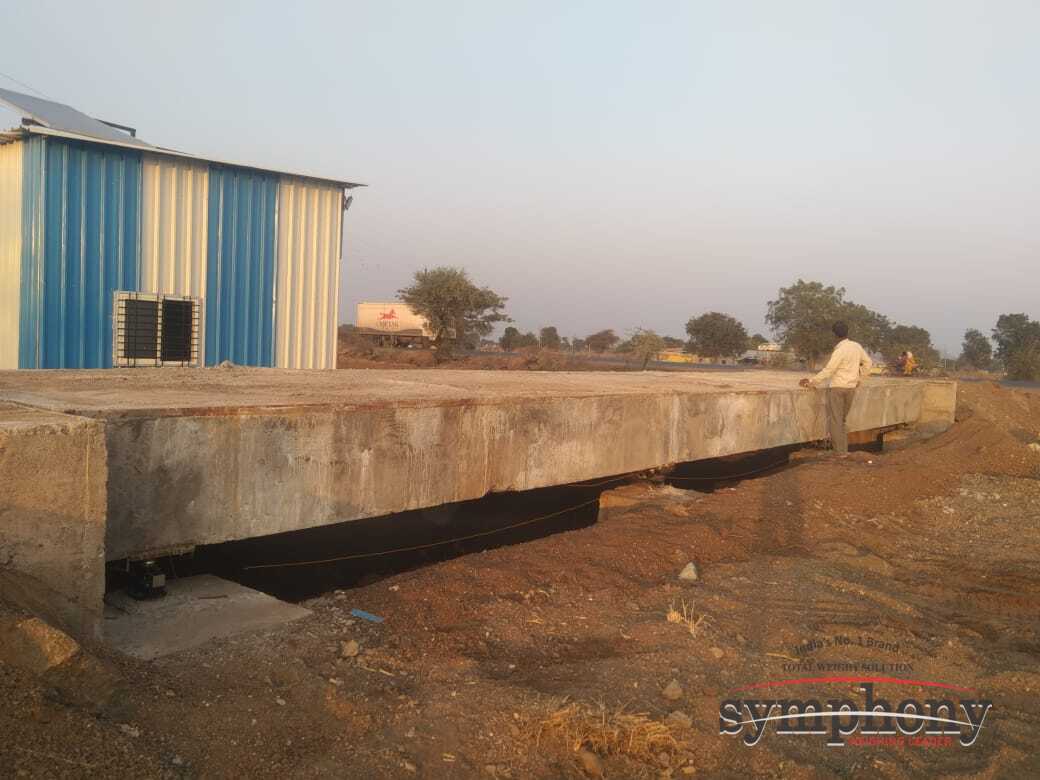

Concrete / RCC weighbridge: Concrete deck with weigh cabin — 07Concrete deck with weigh cabin

Concrete / RCC weighbridge: Tractor-trolley weighed on the concrete deck — 08Tractor-trolley weighed on the concrete deck

What is supplied

One system, every part matched.

Platform

Steel frame and reinforcement made in our workshop; the concrete deck is cast on site to our drawing.

Load cells & junction box

Analog or digital load cells with a surge-protected junction box.

Indicator, printer, software

LED/LCD or touch terminal, slip printer, SMFW Weighment Software option.

Drawing, install, stamp

Foundation drawing, erection, calibration and stamping support.

Before you order

Get the foundation drawing for your size.

Your civil contractor can price and plan the foundation before the weighbridge is ordered. We send the drawing and material list for your exact platform.

Free foundation drawing for your size

Get the foundation drawing and material list for your platform size before you order. Drawings exist for 7.5 to 18 m, pit-type and pit-less; 24 m and longer export platforms on request.

Name

Company name

E-mail

Mobile numberInclude the country code, e.g. +91 or +254.

Country

State / province

City

Postal code (optional)

Weighbridge model

Platform size

Security check

WhatsApp instead

An engineer replies within one working day. We verify your e-mail with a one-time code. By sending, you agree to our privacy notice.

FAQ

Questions, answered.

Steel or RCC deck: which lasts longer?

A concrete deck does not rust and needs no repainting, so it suits coastal, chemical and permanent sites. A steel deck is lighter, faster to install and can be relocated.

How long does the concrete deck take to cure?

Curing time depends on the concrete grade and weather. The schedule is set in your quotation; weighing starts after curing and calibration.

What warranty do you give?

Every Symphony weighbridge carries a 1-year warranty on the platform, load cells and electronics. Concrete (RCC) platforms also carry a 25-year structural warranty on the concrete.

How soon can you deliver?

Generally about 2 weeks from a commercially cleared order with your purchase order. Installation, calibration and stamping follow once the foundation is ready.

What is the difference between a pit-less and a pit-type weighbridge?

A pit-less deck stands above ground on concrete pedestals and uses approach ramps. A pit-type deck sits flush with the ground in a drained pit, so vehicles can enter from any side. Pit-less is faster and simpler to build; pit-type suits tight plots.
