Choose the right platform.
Four platform families, one load-cell system (analog or digital), indicator and software. All 10–100 MT, Class III OIML R76. Tell us about your site and we point you to the right one.
Symphony makes four weighbridge types for 10–100 MT: pit-less (above ground with ramps), pit-type (flush with the ground), concrete/RCC (rust-proof deck) and modular (bolt-together, installs within hours). Choose pit-less for most sites, pit-type for tight plots, RCC for coastal or chemical sites and modular for temporary sites.
Four taps. The right platform.
Answer for your site and we recommend the platform, with a real installation photo of that type.
Answer the four questions; the recommendation appears here.
Pit-less weighbridge
Most industrial sites with room for approach ramps: factories, mines, warehouses, mandis and logistics yards.
Specifications
Pit-type weighbridge
Tight plots, in-plant yards and sites where trucks must turn onto the deck from any side.
Specifications

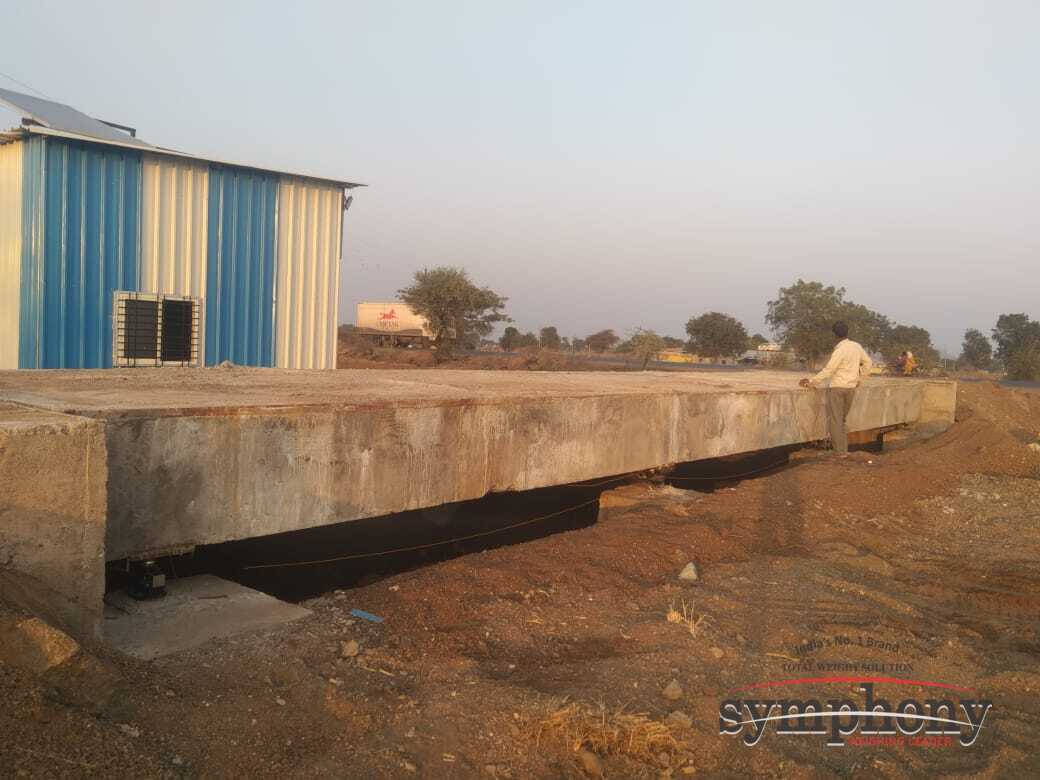

Concrete / RCC weighbridge
Salt works, chemical plants, ports and coastal sites, and any permanent installation where repainting is a cost.
Specifications
Modular / portable weighbridge
Road and infrastructure projects, quarries, batching plants and other temporary or moving sites.
SpecificationsFour platforms, side by side.
| Pit-less | Pit-type | Concrete / RCC | Modular / portable | |
|---|---|---|---|---|
| Capacity | 10 – 100 MT | 10 – 100 MT | 10 – 100 MT (120 MT delivered) | 10 – 100 MT |
| Length (India) | 7 – 18 m | 7 – 18 m | 7 – 18 m | 6 – 18 m |
| Length (Africa / export) | 24 m or longer | 24 m or longer | 24 m or longer | 24 m or longer |
| Deck | Steel; RCC optional | Steel or RCC | Fully RCC or semi-concrete | Steel modular |
| Foundation | Pedestals, no pit | Drained pit | Pit or pit-less | RCC or steel base frame |
| Ramps | Yes | None | Pit-less: yes | Built-in |
| Install | Fast, minimal civil | Needs excavation | Pour and cure | Within hours |
| Best for | Most industrial sites | Tight plots | Coastal, chemical, permanent | Temporary sites |
All platforms: analog or digital load cells, junction box, LED/LCD indicator with printer, Class III · OIML R76. Final sizes and capacities are confirmed in your quotation.
The foundation decides the accuracy.
We issue a foundation drawing for every platform size, for both pit-type and pit-less weighbridges, with rebar details and a material list for your contractor. We can also coordinate the full civil work as an all-in-one package.
- Foundation drawingsPit and pit-less designs for every size from 7.5 to 18 m.
- Material listRebar and concrete quantities listed on the drawing for your contractor.
- Pedestal levelsLoad-cell anchor positions and heights.
- Site supportFoundation inspection visit on request.
| Client scope | |
|---|---|
| Excavation | As per our drawing |
| Concrete | M-30 to M-40 as specified |
| Rebar | TMT as per drawing |
| Earth pits | Earthing and cable ducting |
| Weigh cabin | 230 V supply, 2–5 m from platform |
Tell us your site. We recommend the platform.
Send a site photo, vehicle size and daily vehicle count. An engineer replies within one working day.
