Series 04 · Modular / portable weighbridge

Modular / portable. Installed in hours.

A modular portable weighbridge needs no foundation: it installs within hours on a hard, level surface such as concrete. Prefabricated steel sections with built-in ramps make it easy to move and durable in all weather, with accurate weighing across 10 to 100 MT capacities.

Get a quotation Base drawing for your size Technical specification (PDF)

Symphony Modular / portable weighbridge: Steel modular weighbridge, painted and ready — Steel modular weighbridge, painted and ready

Quick answer

A modular (portable) weighbridge is made of bolt-together steel sections with built-in ramps. It needs no foundation: it installs within hours on a hard, level surface such as concrete, or on a steel frame, and can be moved to a new site, which suits road projects, quarries and batching plants. Symphony builds them from 10 to 100 MT, up to 18 m in India and 24 m or longer for export.

Why choose it

Built for your site.

Best for: Road and infrastructure projects, quarries, batching plants and other temporary or moving sites.

No foundation requiredInstalls within hours on a hard, level surface such as concrete.
RelocatableDismantle, move and re-install when the site changes.
Built-in rampsNo separate approach works.
Weather-proofPainted steel built for all conditions.

Symphony · specification plateModular / portable weighbridge

Item	Specification
Capacity	10 – 100 MT
Platform	Steel modular weighbridge
Length × width	6 – 18 m × 3 m in India; 24 m or longer for Africa and export (custom)
Install time	Within hours on a hard, level surface such as concrete
Weighing	Analog or digital load cells with junction box
Display	LED / LCD indicator with printer
Foundation	No foundation required: a hard, level surface such as concrete, or a steel base frame
Power	230 V AC with CVT
Warranty	1 year on platform, load cells and electronics
Delivery	About 2 weeks from a commercially cleared order and purchase order

Truck-fit planner

Pick your truck. See it on the weighbridge.

Choose the heaviest vehicle you weigh and see it on a modular weighbridge, with its length, capacity and load-cell layout.

Pick a vehicle to see the weighbridge size, capacity and load cells.

Site photographs

Modular / portable from every side.

Real Symphony installations, every photo shown whole. Swipe, use the arrows or open any photo full screen.

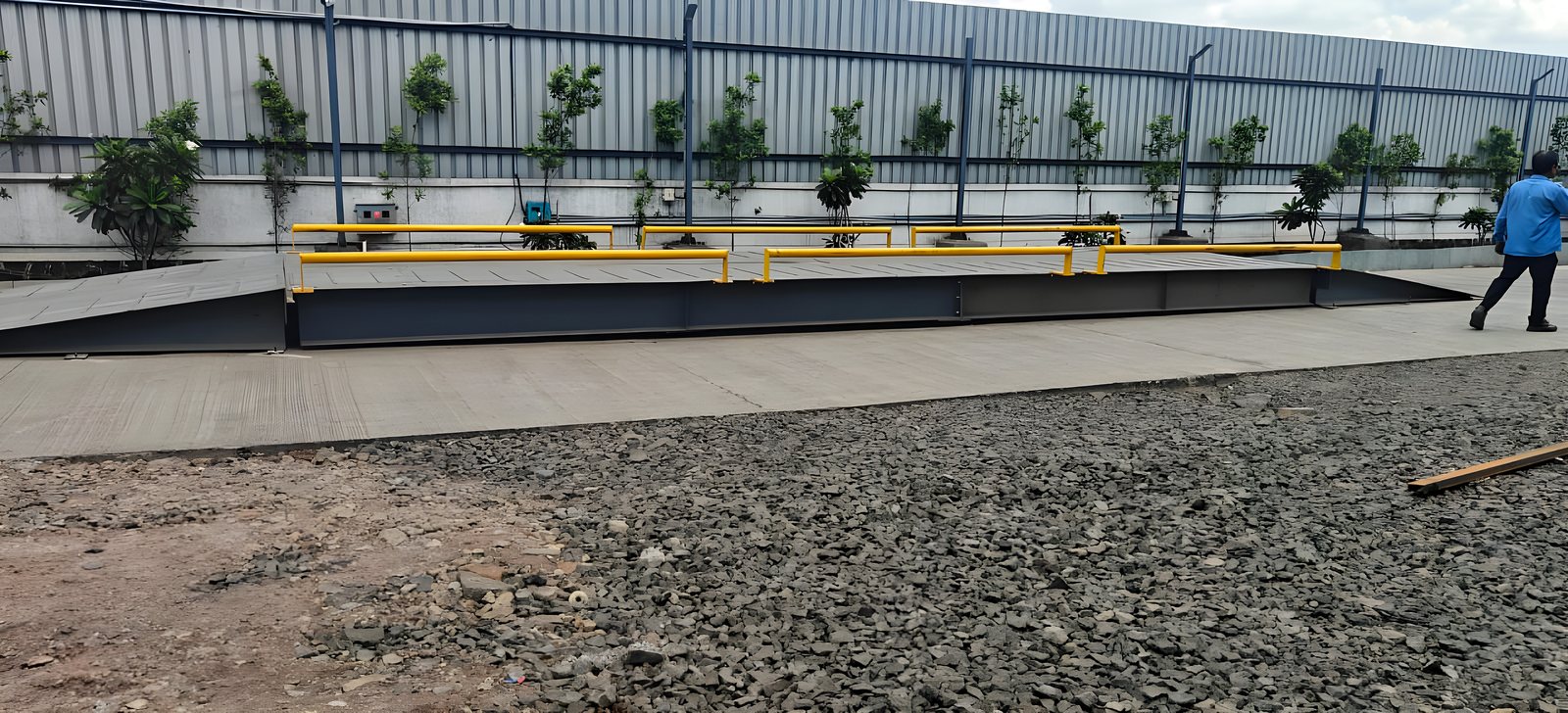

Modular / portable weighbridge: Steel modules bolted together, side view — 01Steel modules bolted together, side view

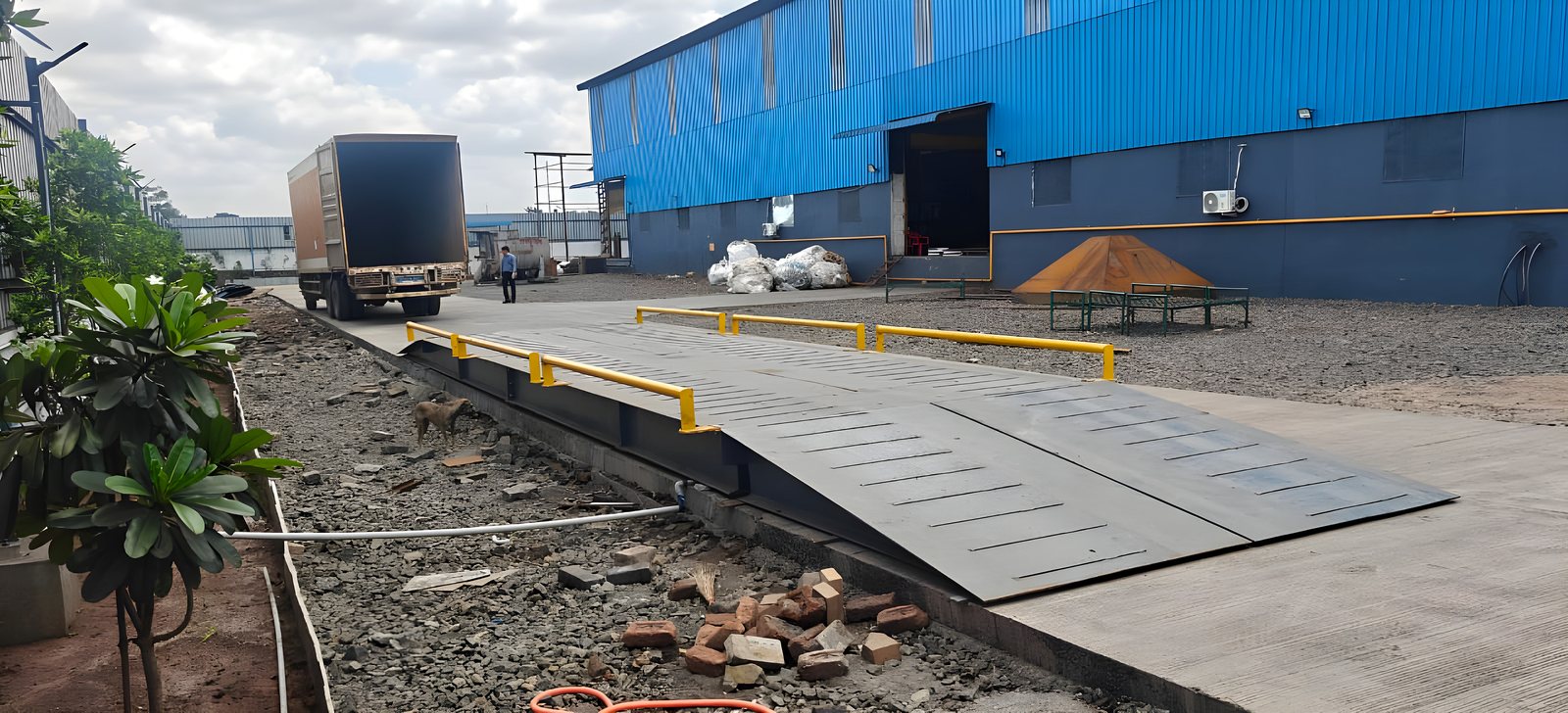

Modular / portable weighbridge: Built-in ramp at the entry end — 02Built-in ramp at the entry end

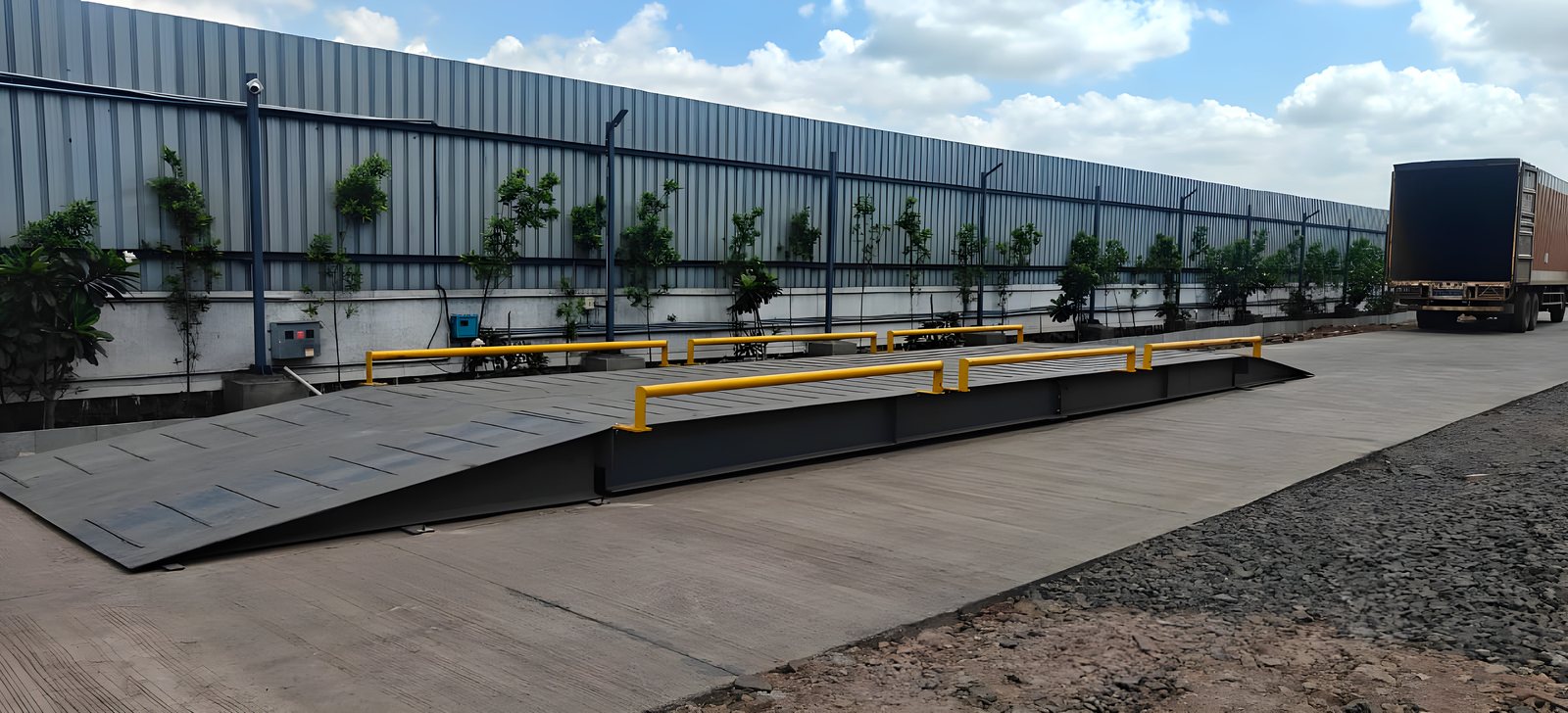

Modular / portable weighbridge: Full length with both ramps — 03Full length with both ramps

Modular / portable weighbridge: Guard rails along the full weighbridge — 04Guard rails along the full weighbridge

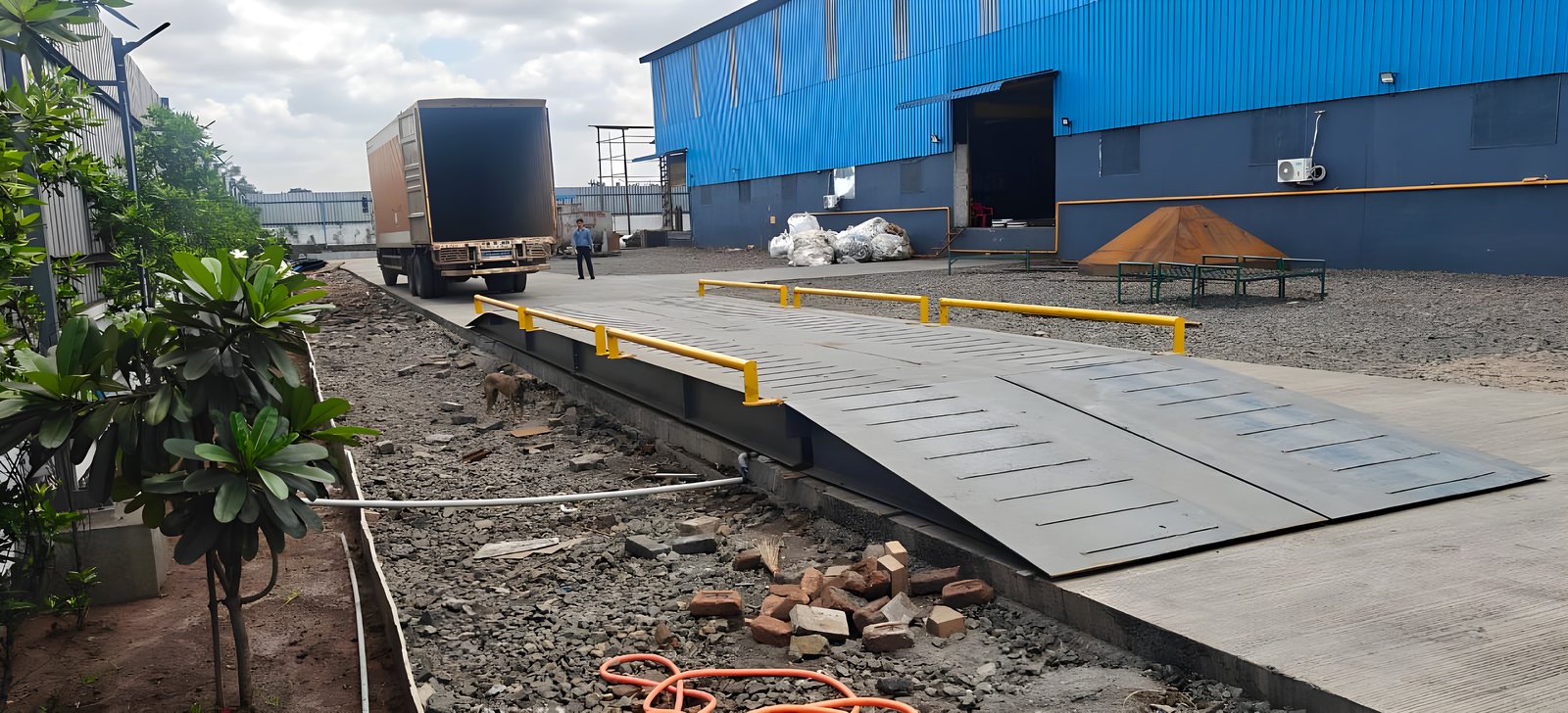

Modular / portable weighbridge: Ramp and weighbridge from the approach — 05Ramp and weighbridge from the approach

What is supplied

One system, every part matched.

Platform

Modular / portable weighbridge fabricated in our workshop, painted before dispatch.

Load cells & junction box

Analog or digital load cells with a surge-protected junction box.

Indicator, printer, software

LED/LCD or touch terminal, slip printer, SMFW Weighment Software option.

Drawing, install, stamp

Base layout drawing (no foundation required), installation, calibration and stamping support.

Before you order

Get the base layout drawing for your size.

No foundation is required: the modular weighbridge sits on a hard, level surface such as concrete. We send the layout drawing for your exact platform so you can check the surface before the weighbridge is ordered.

Free base layout drawing for your size

Get the base layout drawing for your platform size before you order. No foundation is required. Drawings exist for 7.5 to 18 m; 24 m and longer export platforms on request.

Name

Company name

E-mail

Mobile numberInclude the country code, e.g. +91 or +254.

Country

State / province

City

Postal code (optional)

Weighbridge model

Platform size

Security check

WhatsApp instead

An engineer replies within one working day. We verify your e-mail with a one-time code. By sending, you agree to our privacy notice.

FAQ

Questions, answered.

How fast can a modular weighbridge be installed?

Within hours on a hard, level surface such as concrete, followed by calibration.

Does a modular weighbridge need a foundation?

No foundation required. It installs within hours on a hard, level surface such as concrete, or on a steel base frame. No pit or pedestal foundation is built.

What warranty do you give?

Every Symphony weighbridge carries a 1-year warranty on the platform, load cells and electronics. Concrete (RCC) platforms also carry a 25-year structural warranty on the concrete.

How soon can you deliver?

Generally about 2 weeks from a commercially cleared order with your purchase order. Installation, calibration and stamping follow once the foundation is ready.

What is the difference between a pit-less and a pit-type weighbridge?

A pit-less weighbridge stands above ground on concrete pedestals and uses approach ramps. A pit-type weighbridge sits flush with the ground in a drained pit, so vehicles can enter from any side. Pit-less is faster and simpler to build; pit-type suits tight plots.
