Series 02 · Pit-type weighbridge

Pit-type. Flush with the ground.

The platform is level with the ground, so vehicles enter from any side without ramps. Ideal for sites with limited space. It needs an underground pit with drainage and gives a durable, stable and accurate weighing solution.

Get a quotation Sample foundation drawing (PDF)Technical specification (PDF)

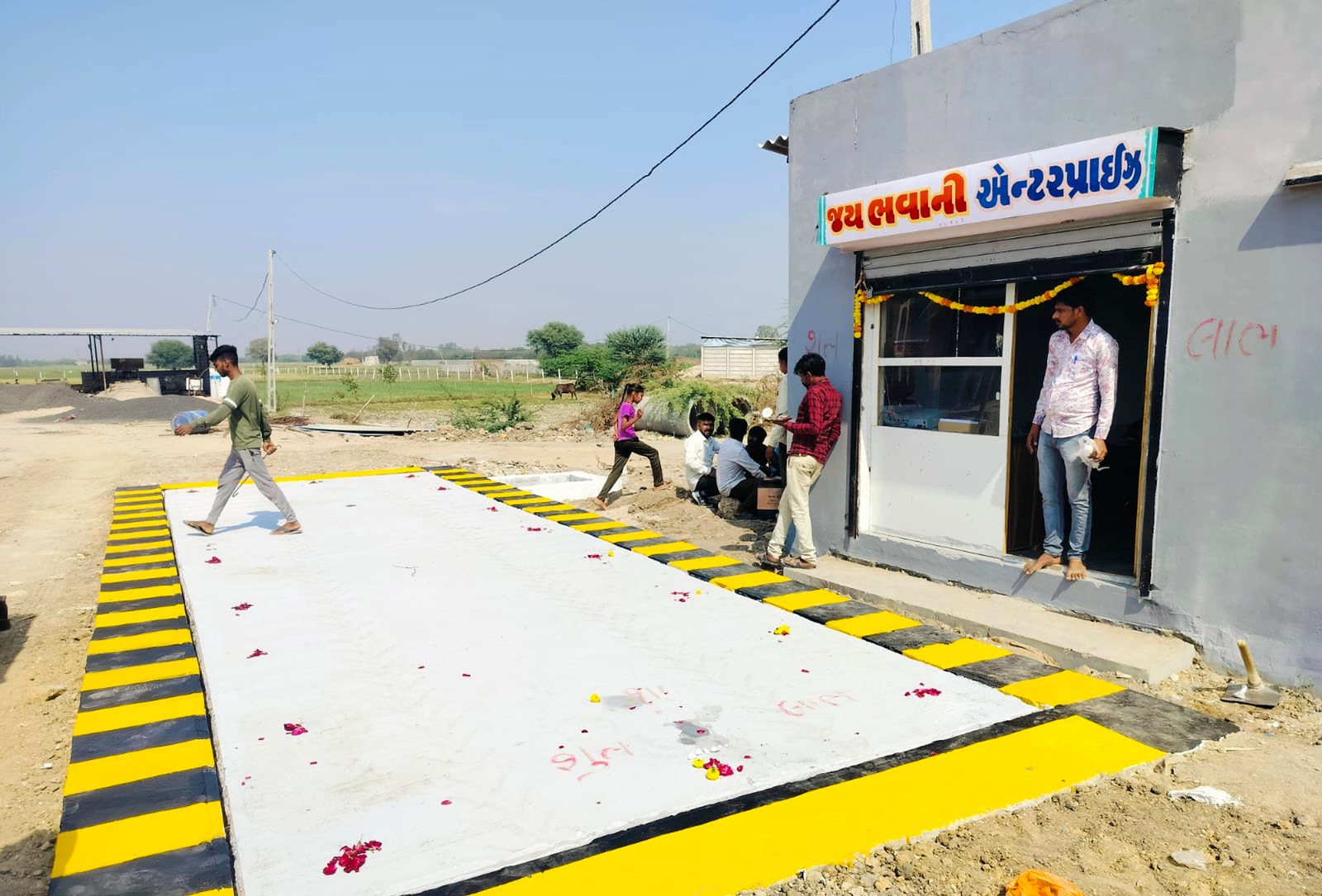

Symphony Pit-type weighbridge: Pit-type deck flush with the ground, with hazard kerb — Pit-type deck flush with the ground, with hazard kerb

Quick answer

A pit-type weighbridge sits in a drained pit so its deck is level with the ground. Trucks can drive on from any side and no ramps are needed, which suits tight plots. It needs excavation, retaining walls and drainage. Symphony builds them from 10 to 100 MT with steel or RCC decks.

Why choose it

Built for your site.

Best for: Tight plots, in-plant yards and sites where trucks must turn onto the deck from any side.

No ramps neededEnter from any side; the smallest footprint.
Protected cellsLoad cells sit below grade, clear of vehicle strikes.
Steel or RCCChoose the deck to suit your site.

Symphony · specification platePit-type weighbridge

Item	Specification
Capacity	10 – 100 MT (higher on request)
Platform	Mild steel or RCC, customisable
Length × width	7 – 18 m × 3 m in India; 24 m or longer for Africa and export (custom)
Load cells	6 cells (up to 12 m), 8 cells (16 m), 10 cells (18 m)
Weighing	Analog or digital load-cell system
Accuracy	Class III · OIML R76
Display	LED / LCD indicator with printer
Foundation	Drained pit, deck flush with ground
Power	230 V AC with CVT; solar option
Warranty	1 year on platform, load cells and electronics
Delivery	About 2 weeks from a commercially cleared order and purchase order

Truck-fit planner

Pick your truck. See it on the deck.

Choose the heaviest vehicle you weigh and see it on a pit-type deck, with the deck length, capacity and load-cell layout.

Pick a vehicle to see the deck size, capacity and load cells.

Site photographs

Pit-type from every side.

Real Symphony installations, every photo shown whole. Swipe, use the arrows or open any photo full screen.

Pit-type weighbridge: Concrete deck flush with the ground at a public weighbridge — 01Concrete deck flush with the ground at a public weighbridge

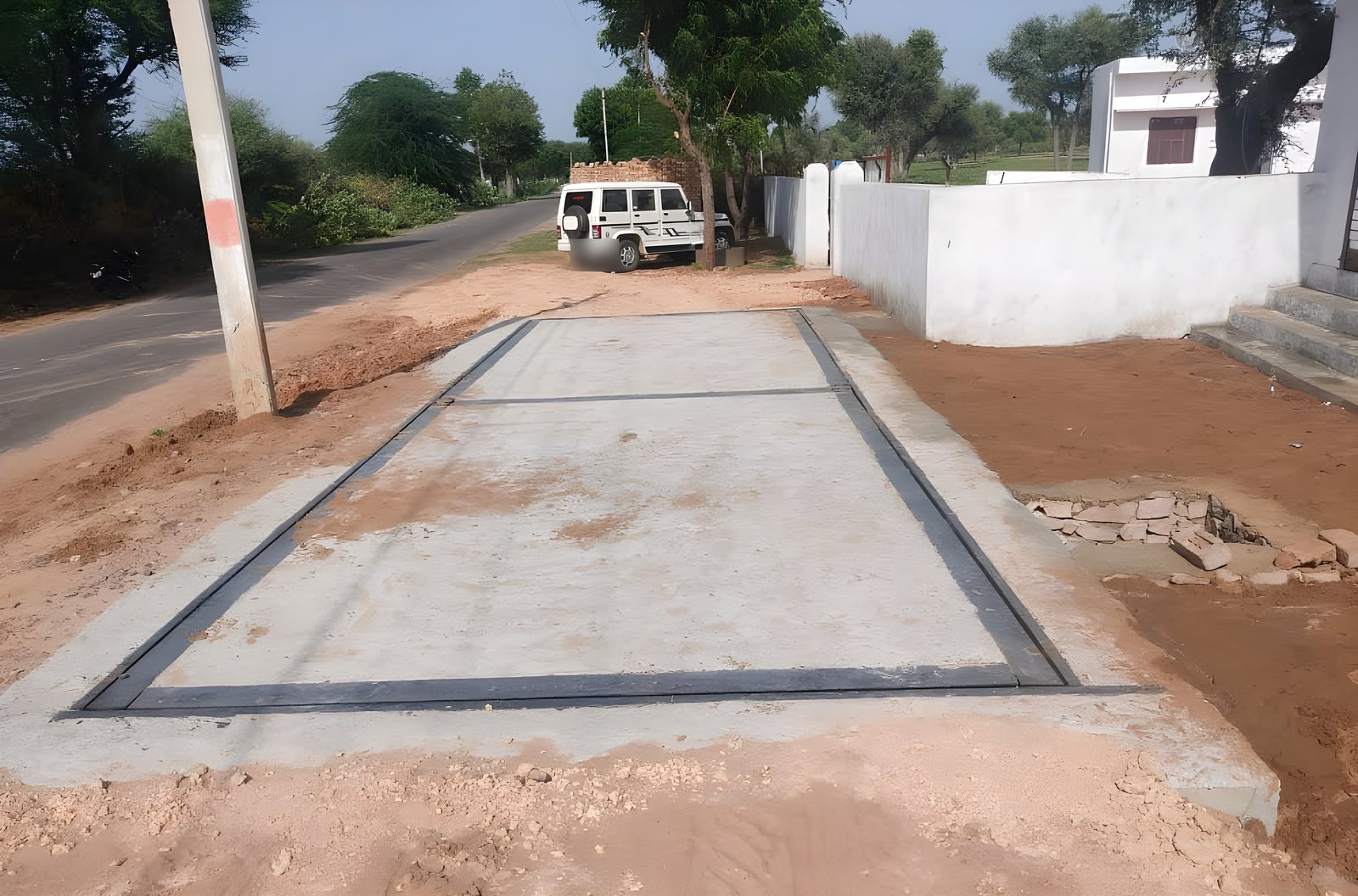

Pit-type weighbridge: Pit-type deck in a steel frame at a roadside site — 02Pit-type deck in a steel frame at a roadside site

Pit-type weighbridge: Full platform with hazard kerb — 03Full platform with hazard kerb

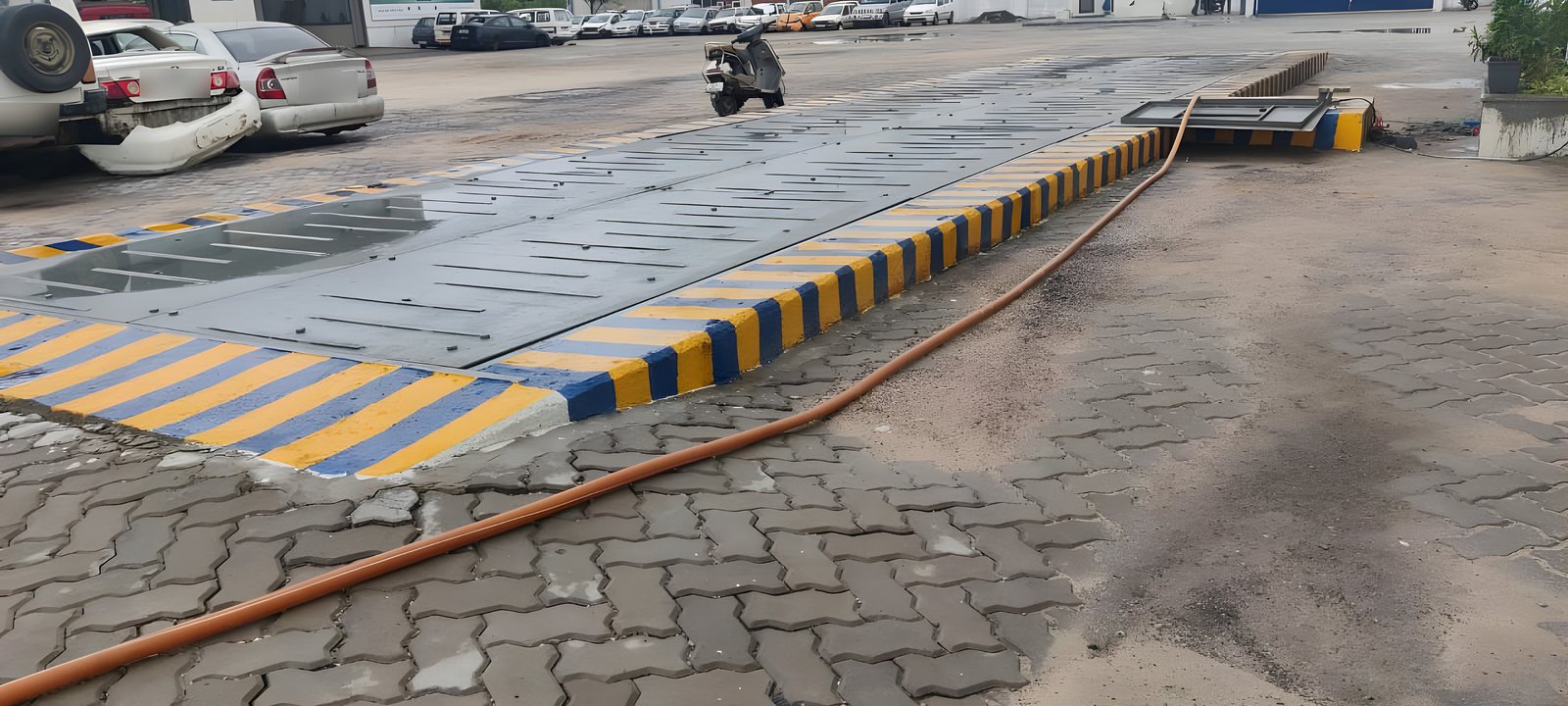

Pit-type weighbridge: From the corner, showing both entries — 04From the corner, showing both entries

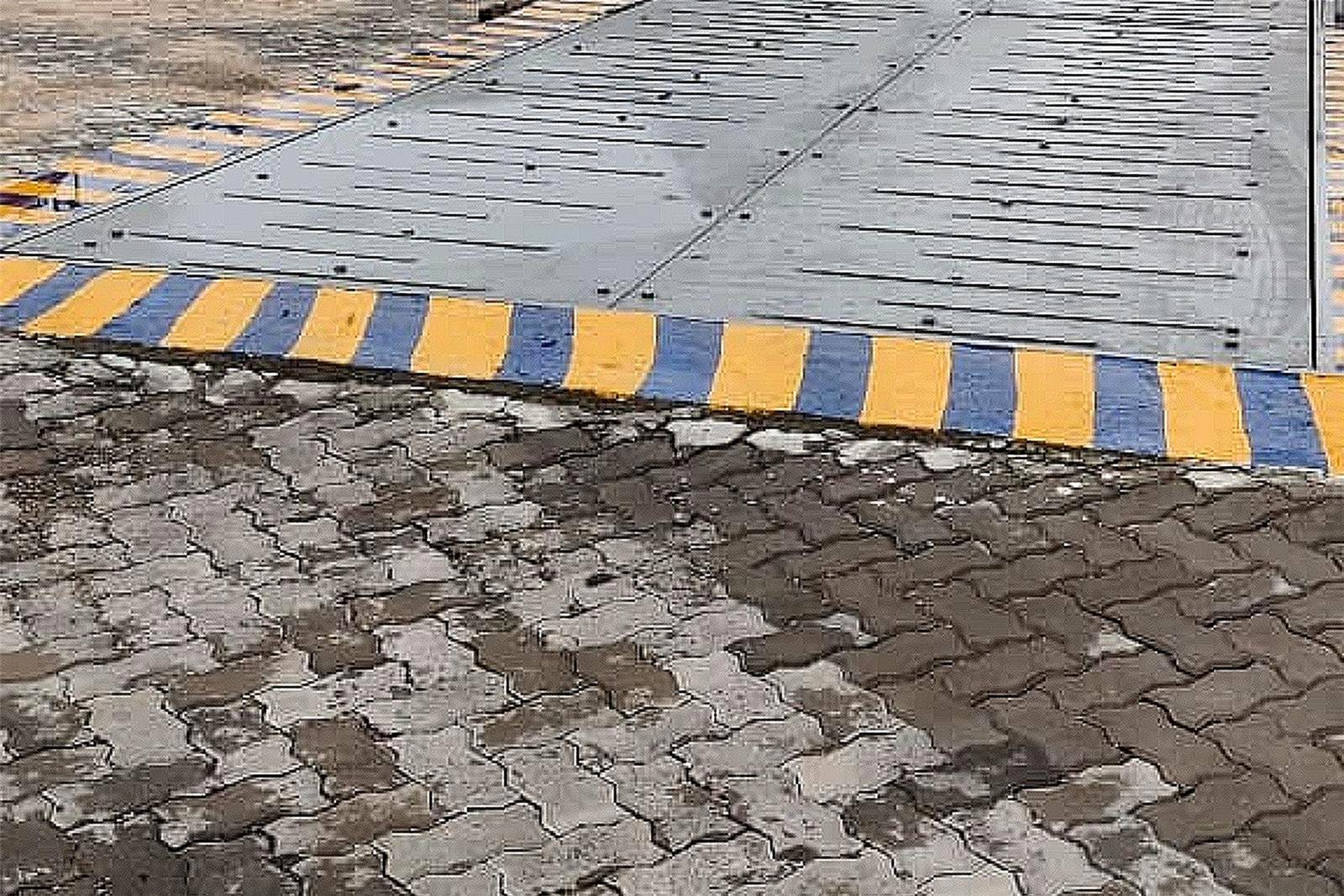

Pit-type weighbridge: Deck edge flush with the paved yard — 05Deck edge flush with the paved yard

What is supplied

One system, every part matched.

Platform

Pit-type deck fabricated in our workshop, painted before dispatch.

Load cells & junction box

Analog or digital load cells with a surge-protected junction box.

Indicator, printer, software

LED/LCD or touch terminal, slip printer, SMFW Weighment Software option.

Drawing, install, stamp

Foundation drawing, erection, calibration and stamping support.

Before you order

Get the foundation drawing for your size.

Your civil contractor can price and plan the foundation before the weighbridge is ordered. We send the drawing and material list for your exact platform.

Free foundation drawing for your size

Get the foundation drawing and material list for your platform size before you order. Drawings exist for 7.5 to 18 m, pit-type and pit-less; 24 m and longer export platforms on request.

Name

Company name

E-mail

Mobile numberInclude the country code, e.g. +91 or +254.

Country

State / province

City

Postal code (optional)

Weighbridge model

Platform size

Security check

WhatsApp instead

An engineer replies within one working day. We verify your e-mail with a one-time code. By sending, you agree to our privacy notice.

FAQ

Questions, answered.

How is water kept out of the pit?

The pit has a drainage slope and sump as per our drawing. Keep the drain clear; we check it during AMC visits.

Is a pit-type weighbridge more expensive?

The deck is similar, but the civil work is larger because of excavation, retaining walls and drainage.

What warranty do you give?

Every Symphony weighbridge carries a 1-year warranty on the platform, load cells and electronics. Concrete (RCC) platforms also carry a 25-year structural warranty on the concrete.

How soon can you deliver?

Generally about 2 weeks from a commercially cleared order with your purchase order. Installation, calibration and stamping follow once the foundation is ready.

What is the difference between a pit-less and a pit-type weighbridge?

A pit-less deck stands above ground on concrete pedestals and uses approach ramps. A pit-type deck sits flush with the ground in a drained pit, so vehicles can enter from any side. Pit-less is faster and simpler to build; pit-type suits tight plots.
