Nashik weighbridges for onion chawls and grape packhouses.
Nashik is the onion and grape country of Maharashtra. Onions from Niphad, Lasalgaon and Pimpalgaon are traded and stored in chawls through the year, vineyards around Dindori and Niphad pack table grapes for export and supply the wineries, and the MIDC estates at Satpur, Ambad and Sinnar make engineering and automotive parts. Symphony supplies weighbridges, truck scales and dharam kanta, tol kanta or vajan kata (धर्म कांटा / तौल कांटा / वजन काटा) across Nashik district.
A Nashik onion trader or chawl owner needs a 40–60 MT, 16 m weighbridge (dharam kanta or vajan kata) to weigh stock in and out; a grape packhouse 60 MT on 18 m for reefer containers, and an MIDC engineering unit 60–80 MT. Symphony builds the truck scale in Ahmedabad.
Onion dries in the chawl: weigh it in, weigh it out.
- Storage loss in black and whiteWeigh every onion lot into the chawl and out again; SMFW keeps both slips against the party and vehicle number.
- Reefers weighed before they leaveAn 18 m weighbridge takes a 40-ft reefer trailer in one go, so the loaded truck is weighed before it leaves the packhouse; the exporter or its agent derives the container weight for the shipping papers as the shipping line requires.

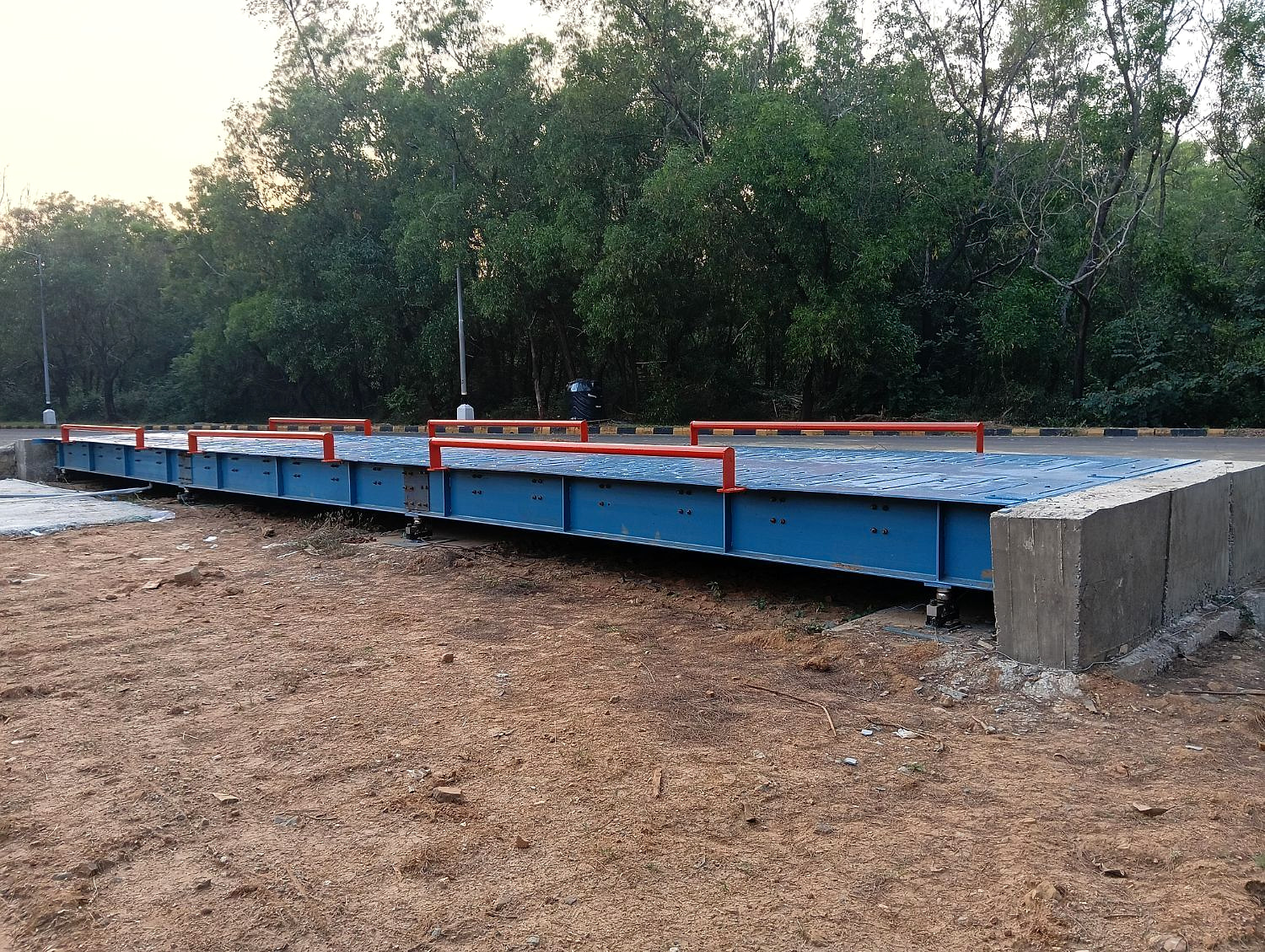

- Raised for the monsoonA pit-less weighbridge on raised pedestals with sealed IP68/IP69K load cells keeps working through the wet months.
Who needs one in Nashik: Onion trade and storage at the Lasalgaon, Pimpalgaon and Nashik APMC yards, grape packhouses, cold stores and wineries, engineering, automotive and electrical units in the MIDC areas at Satpur, Ambad and Sinnar, and transport serving the Mumbai–Agra highway.
Also called a dharam kanta (धर्म कांटा), truck scale or weigh bridge. We also serve Sinnar, Lasalgaon, Niphad, Pimpalgaon Baswant, Dindori, Igatpuri.
Onion traders, grape exporters and MIDC engineering units.
Onion traders and chawl owners
Onion is bought by weight in the harvest months and sold by weight months later, after it has dried in the chawl; without a weight on both sides, the storage loss is a guess.
Our setup: A 40–60 MT, 16 m pit-less weighbridge with SMFW slips, so every lot has an inward and an outward slip under the same party name.
Grape packhouses and exporters
Export grapes leave in reefer containers in a short season, and the exporter or its agent derives the container weight for the shipping papers as the shipping line requires.
Our setup: A 60 MT, 18 m pit-less steel weighbridge so a 40-ft reefer trailer weighs in one go, with slips that carry the vehicle number, party and challan field.
MIDC engineering and auto component units
Steel bars, castings and forgings come in by weight and machined parts leave by weight, and the store must reconcile both every month.
Our setup: A 60–80 MT concrete (RCC) or pit-less steel weighbridge, 16 m for trucks and 18 m where bar trailers come in, with SMFW reports by party.
- MIDC Satpur, Nashikengineering, electrical and automotive component units
- MIDC Ambad, Nashikautomotive, engineering and fabrication units
- MIDC Sinnar and Malegaon MIDC, Sinnar talukaengineering, forging and processing units
Ghat-side monsoon and onion skins: raise the weighbridge, seal the cells.
In Nashik the weighbridge settles two very different trades. Onion is bought from the farmer by weight, stored in chawls for months and sold by weight, and it can lose weight in storage as it dries; only a weighbridge reading at the gate, in and out, shows the real storage loss and the real margin. Grapes move in the opposite way: fast, cold and boxed, in reefer containers (the exporter or its agent derives the container weight for the shipping papers as the shipping line requires), so the weighbridge should take a 40-ft reefer trailer in one go. The monsoon is heavy on the ghat side around Igatpuri and the soil around the yards turns to mud, so raise the weighbridge on a pit-less foundation, slope the approaches away from it and keep the drain clear. Onion skins and dust blow into every corner at the APMC yards, so use sealed IP68/IP69K load cells and clear the gap around the weighbridge after every busy day.
| Recommended for | Vehicles | Capacity | Weighbridge | Type |
|---|---|---|---|---|
| Onion trader / chawl storage | 10–12 wheel trucks, tractor-trolleys | 40–60 MT | 16 m | Pit-less steel |
| Grape packhouse / cold store | 40-ft reefer container trailers | 60 MT | 18 m | Pit-less steel |
| MIDC engineering / auto unit | Trucks, trailers with bars and castings | 60–80 MT | 16–18 m | Concrete (RCC) or pit-less steel |
| Winery / food processing unit | Grape trucks in, case trucks out | 40 MT | 12–16 m | Pit-less steel |
Starting points only. Send your heaviest truck and daily traffic and we confirm the size.
From the onion lot at the gate to an inward and outward slip.
Six steps for your project in Nashik. Most of the waiting is the foundation curing, so the drawing comes first.
- 1 · Your traffic in NashikTell us the heaviest vehicle you weigh (here, typically 10–12 wheel trucks, tractor-trolleys), the space at the gate and the daily count. An engineer replies within one working day.
- 2 · Size and quotationOur usual starting point (onion trader / chawl storage): 40–60 MT, 16 m weighbridge, Pit-less steel. The quotation comes with the foundation drawing.
- 3 · Foundation on siteYour civil contractor builds the concrete pedestals to our drawing; we can check the levels before the weighbridge arrives.
- 4 · Fabrication and dispatchBuilt and tested in our Ahmedabad workshop; dispatch in about 2 weeks from a commercially cleared order with PO, then delivered and placed on your foundation.
- 5 · Installation and calibrationWeighbridge placed, load cells and indicator connected and calibrated, slip printing set up, and Legal Metrology verification supported.
- 6 · AMC and serviceAMC, breakdown visits, calibration and annual re-verification support from our technical desk, so the weighbridge stays accurate for years.
Nashik onion and grape questions.
Who supplies weighbridges in Nashik?
Which weighbridge suits an onion trader in Nashik?
नाशिक में प्याज़ व्यापार के लिए कौन सा धर्म कांटा उपयुक्त है?
Can a grape exporter in Nashik weigh reefer containers?
How soon can a vajan kata be dispatched to Nashik?
How much does a weighbridge cost in Nashik?
नाशिक में प्याज़ भंडारण इकाई के लिए धर्म कांटा स्थापित करने से पहले क्या तय करें?
Tell us your site. We recommend the platform.
Send a site photo, vehicle size and daily vehicle count. An engineer replies within one working day.
